Plastic terminal box uses flame-retardant ABS and is suitable for sensors, limit S/W, V/V box, and various S/W types of intermediate terminal boxes. It is produced integrally without hassle to assemble the existing prefabricated terminal block and box, maximizing productivity and saving resources for more practical and safe use. It is mainly used in various fields such as industrial machinery, robotics, commercial wiring, and low voltage control systems.



Ordering Information
  • Product name : Plastic Terminal Box
  • The number of pin : 4 – 50Pin
  • Ampere : P, PT : 10A / P15 : 15A
  • Color : G : Gray / I : Ivory
                      GC : Gray with Transparent cover
                      IC : Ivory with Transparent cover



Product feature
  • Boxes come in two colors, gray and ivory, with three types of covers: gray, ivory and transparent.
  • Waterproof and dustproof with poly urethane packing.
  • Terminal integral box with flame retardant ABS available in various sizes for user convenience
  • Certificates : CE ROHS
View Catalog
Product specifications
  • Color : Gray, Ivory, Transparent cover
  • Tolerance : ±1mm
  • Operating Temperature : -20℃ ~ 70℃
  • Protection rating : IP65 / IK08 / IP2X (TB-4P, 6P models only)
  • Materials : ABS / Transparent cover [PC]
  • Mounting & Hole size: 0.17in
  • Allowable current : 10A /15A
  • Rated frequency : 50Hz
  • Input voltage: AC250Volts
  • Internal voltage : 1880V /1minute
Model Size(mm) Weight(g) Pictures Videos
SG-TB-4P 50 X 85 X 40 80 View Pictures View Videos
SG-TB-4P15 52 X 90 X 45 94 View Pictures View Videos

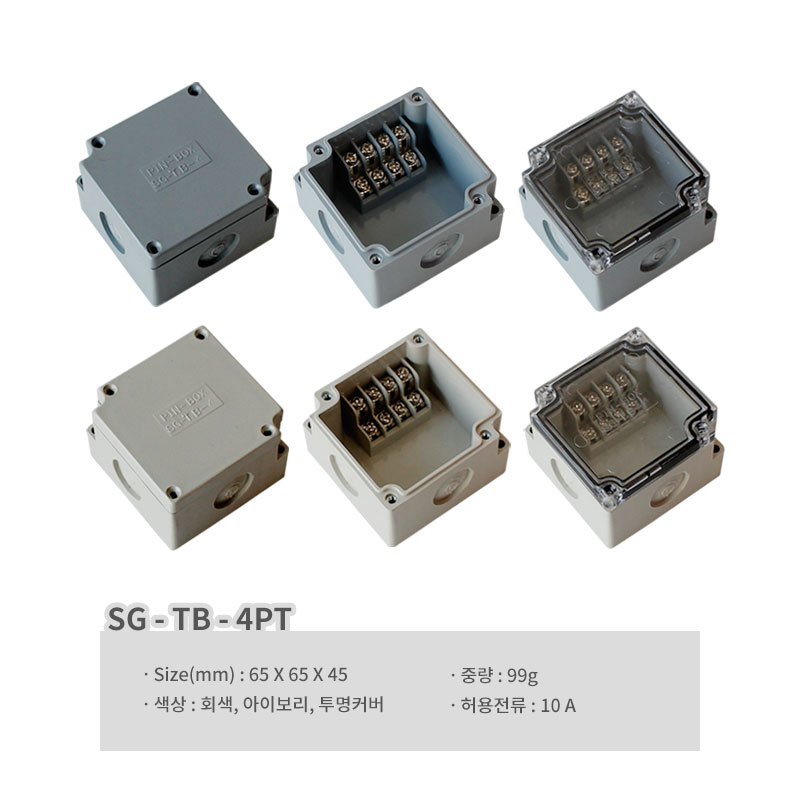

SG-TB-4PT 65 X 65 X 45 99 View Pictures View Videos
SG-TB-6P 55 X 85 X 40 88 View Pictures View Videos
SG-TB-6P15 65 X 90 X 45 135 View Pictures View Videos
SG-TB-6PT 65 X 80 X 45 115 View Pictures View Videos
SG-TB-10P15 90 X 100 X 45 183 View Pictures View Videos
SG-TB-10PT 65 X 110 X 45 156 View Pictures View Videos
SG-TB-15P15 100 X 200 X 65 423 View Pictures View Videos
SG-TB-15PT 75 X 170 X 55 290 View Pictures View Videos
SG-TB-20P15 150 X 160 X 65 479 View Pictures View Videos
SG-TB-20PT 80 X 235 X 56 440 View Pictures View Videos
SG-TB-25PT 90 X 275 X 70 579 View Pictures View Videos

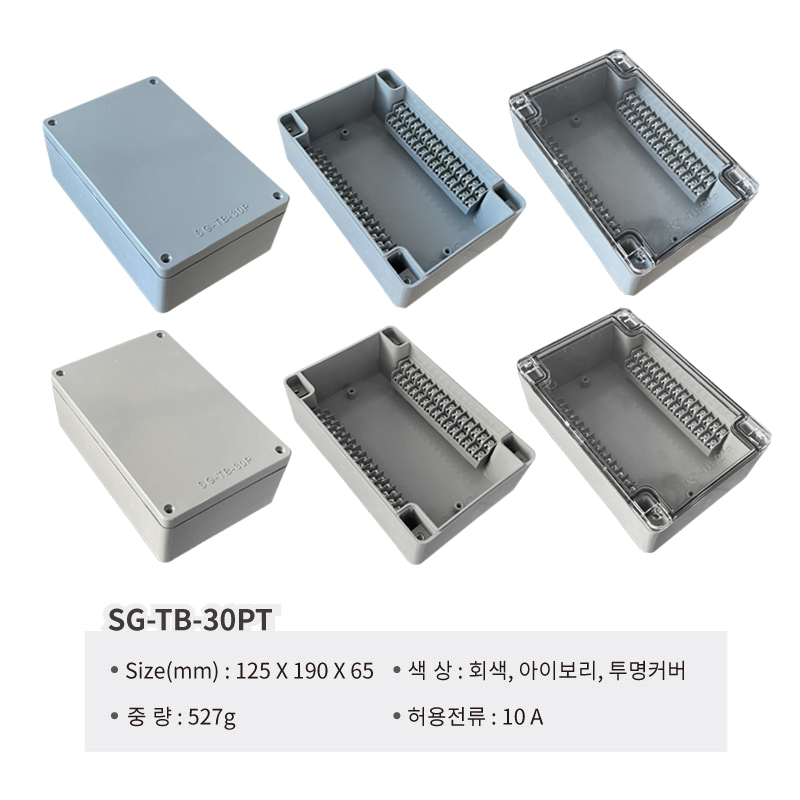

SG-TB-30P 125 X 190 X 65 527 View Pictures View Videos
SG-TB-30PT 125 X 190 X 65 527 View Pictures View Videos
SG-TB-40P 160 X 260 X 90 1421 View Pictures View Videos
SG-TB-50P 160 X 260 X 90 1522 View Pictures View Videos
CAD Download
