Only the parts you want can be purchased separately
There are 2 capacities : 100A / 200A
There are 3 terminals : 10P / 12P / 15P
There are 4 busbars : L1 / L2 / L3 / L4
There are protective cover to prevent accidents such as electric shock in advance
Busbar direction (left, right) position can be changed.
The power distribution kit can be connected directly to the breaker main. This product increases the efficiency of installation work by making it easy to wire cables by varying the height of each stage.

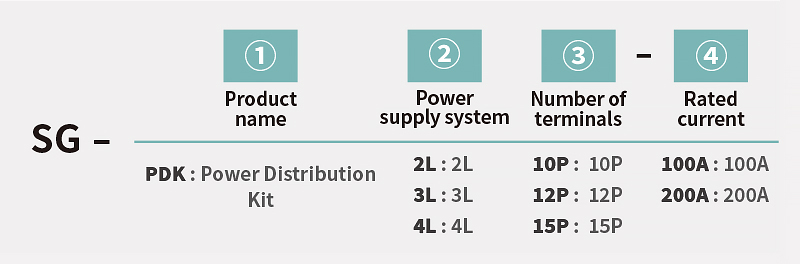

Ordering Information
① Product name : Power Distribution Kit
② Power supply system : 2L / 3L / 4L
③ The Number of terminals : 10P / 12P / 15P
④ Rated current : 100A / 200A
Product specifications
Busbar ( 100A / 200A )
The height of each busbar is different
Current
100A
Model
Bar L1
Bar L2
Bar L3
Bar L4
Size( W X L X H)
10P
15 X 189 X 3mm
15 X 189 X 11mm
15 X 189 X 18mm
15 X 189 X 25mm
12P
15 X 213 X 3mm
15 X 213 X 11mm
15 X 213 X 18mm
15 X 213 X 25mm
15P
15 X 249 X 3mm
15 X 249 X 11mm
15 X 249 X 18mm
15 X 249 X 25mm
Thickness
3T
Bar mounting hole
Ø6
Breaker mounting hole
Ø9
Screw
M5 X 9.2
Pitch
12mm
Rated voltage
600V
Materials
99.9% CU + Tin plated
Current
200A
Model
Bar L1
Bar L2
Bar L3
Bar L4
Size( W X L X H)
10P
20 X 212 X 4mm
20 X 212 X 14mm
20 X 212 X 21mm
20 X 212 X 28mm
12P
20 X 240 X 4mm
20 X 240 X 14mm
20 X 240 X 21mm
20 X 240 X 28mm
15P
20 X 282 X 4mm
20 X 282 X 14mm
20 X 282 X 21mm
20 X 282 X 28mm
Thickness
4T
Bar mounting hole
Ø6
Breaker mounting hole
Ø9
Screw
M6 X 12
Pitch
14mm
Rated voltage
600V
Materials
99.9% CU + Tin plated
P cover ( 100A / 200A )
Protective cover configured by size
Current
100A
Model
P cover 2L
P cover 3L
P cover 4L
Size(W X L)
10P
110 X 235mm
140 X 235mm
170 X 235mm
12P
110 X 260mm
140 X 260mm
170 X 260mm
15P
110 X 295mm
140 X 295mm
170 X 295mm
Mounting size(W X L)
10P
90 X 215mm
120 X 215mm
150 X 215mm
12P
90 X 240mm
120 X 240mm
150 X 240mm
15P
90 X 275mm
120 X 275mm
150 X 275mm
Hole size
Ø7
Thickness
4T
Materials
Acryl
Current
200A
Model
P cover 3L (2L common use)
P cover 4L
Size(W X L)
10P
155 X 260mm
190 X 260mm
12P
155 X 290mm
190 X 290mm
15P
155 X 330mm
190 X 330mm
Mounting size(W X L)
10P
135 X 240mm
170 X 240mm
12P
135 X 270mm
175 X 270mm
15P
135 X 310mm
170 X 310mm
Hole size
Ø7
Thickness
4T
Materials
Acryl
Busbar support( 100A / 200A )
This is a product that helps ensure that the height and spacing of the
busbars coming down from the breaker are constant. The spacing is created
according to the capacity of the breaker.
Current
100A
Model
Bar support 1P
Bar support 3P
Bar support 4P
breaker types
All available
standard type (ABS103)
standard type (ABS33~53)
economic type(ABN33~103)
standard type (ABS104)
standard type (ABS34~54)
economic type (ABN34~104)
