IECEx aluminum explosion-proof box is a product that has obtained IECEx explosion-proof certification and is used for various purposes in various industries such as factories and warehouses.
With an IP66 rating, it is protected from dust and can be protected from high-pressure water jets sprayed from all directions.
Available in 15 different sizes, it can be used in various places where explosion protection is required.
Nomenclature
![](https://segibiz7.cafe24.com/wp-content/uploads/2024/07/sgal_name1-1024x367.jpg)
- ① Product name : EX Aluminum Box
- ② Product Size : Width x Length x height
Product feature
![](https://segibiz7.cafe24.com/wp-content/uploads/2024/08/e_atex_feature-1.jpg)
- IECEx explosion proof accreditation model
- Ground terminal connected
- Use star L wrench
- Made to be waterproof and dustproof with special processes.
- Mounting plates are available separately.
- Certificates :
Product specifications
- Color : Gray
- Tolerance : ±1mm
- Thickness : 3.5t ~ 4t
- Operating temperature : -20 ~ 80℃
- Protection rating : IP66
- Materials: Aluminum [ALDC 12.1]
Model | Size(mm) | weight (g) | Pictures |

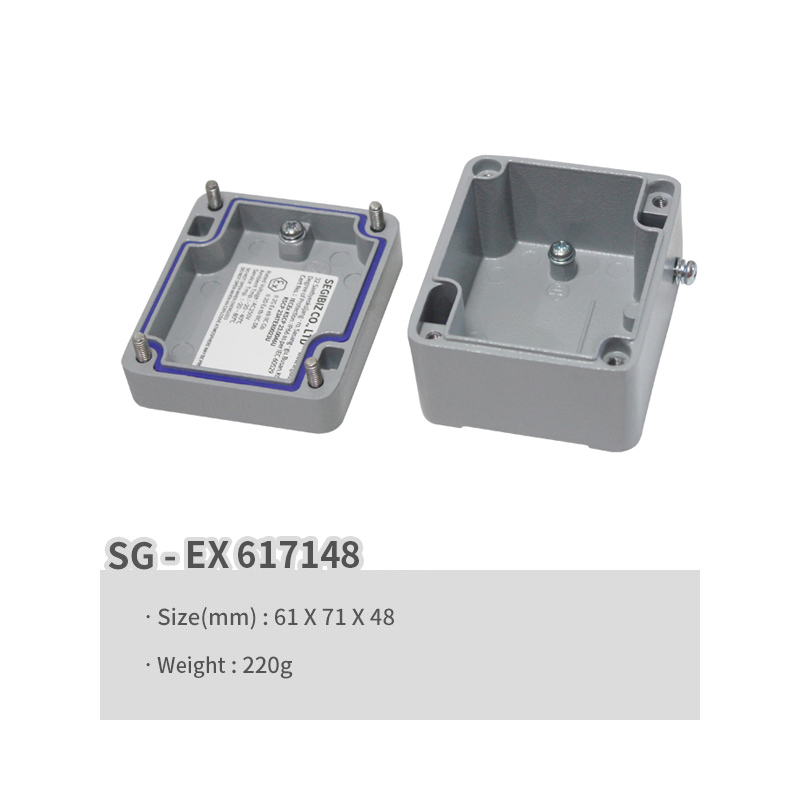

SG-EX617148 | 61 X 71 X 48 | 220 | View Pictures |

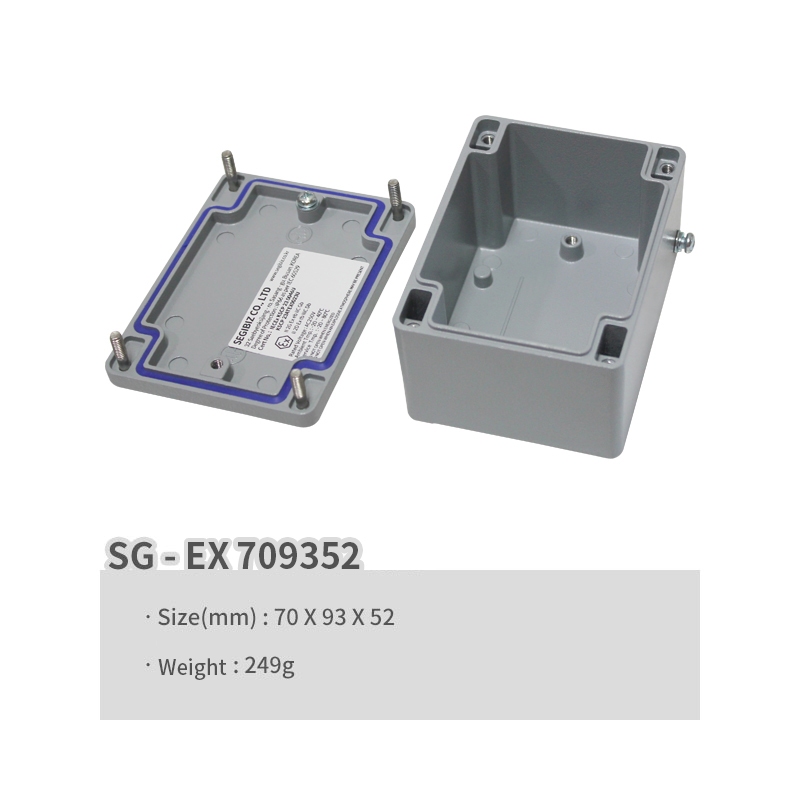

SG-EX709352 | 70 X 93 X 52 | 249 | View Pictures |

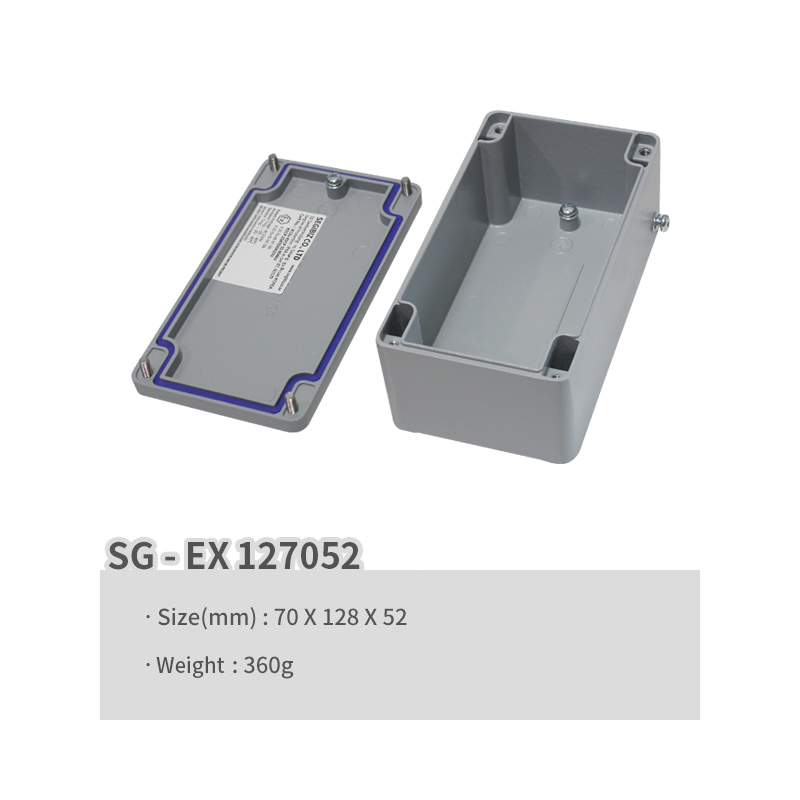

SG-EX127052 | 70 X 128 X 52 | 360 | View Pictures |

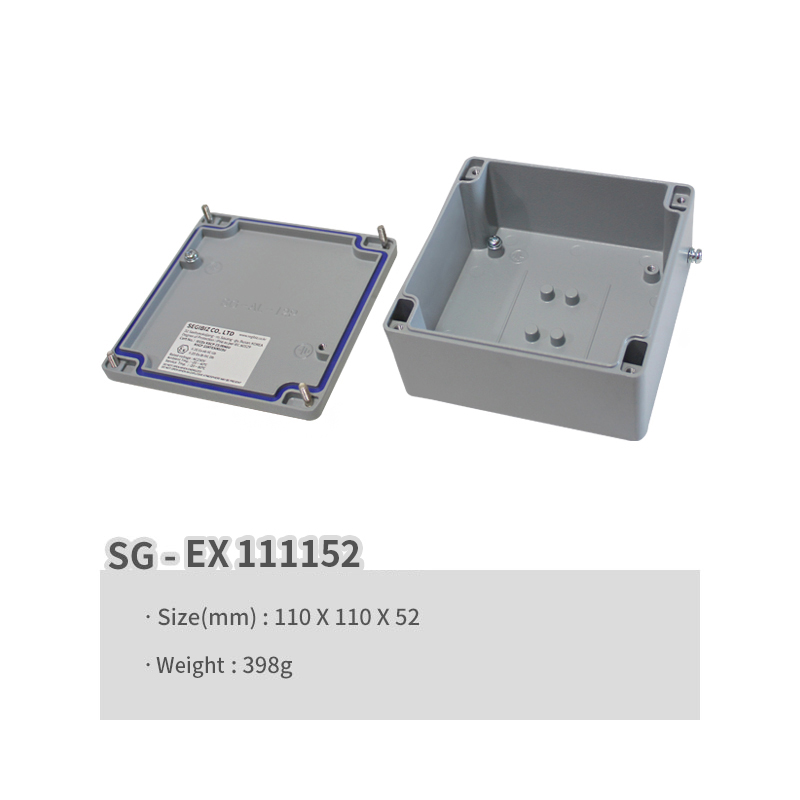

SG-EX111152 | 110 X 110 X 52 | 398 | View Pictures |

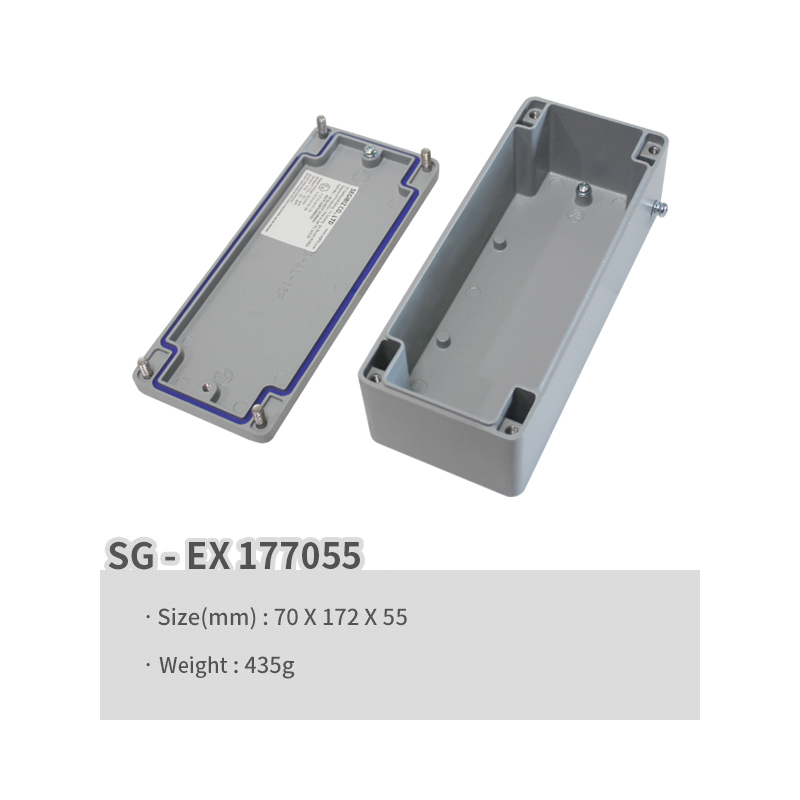

SG-EX177055 | 70 X 172 X 55 | 435 | View Pictures |

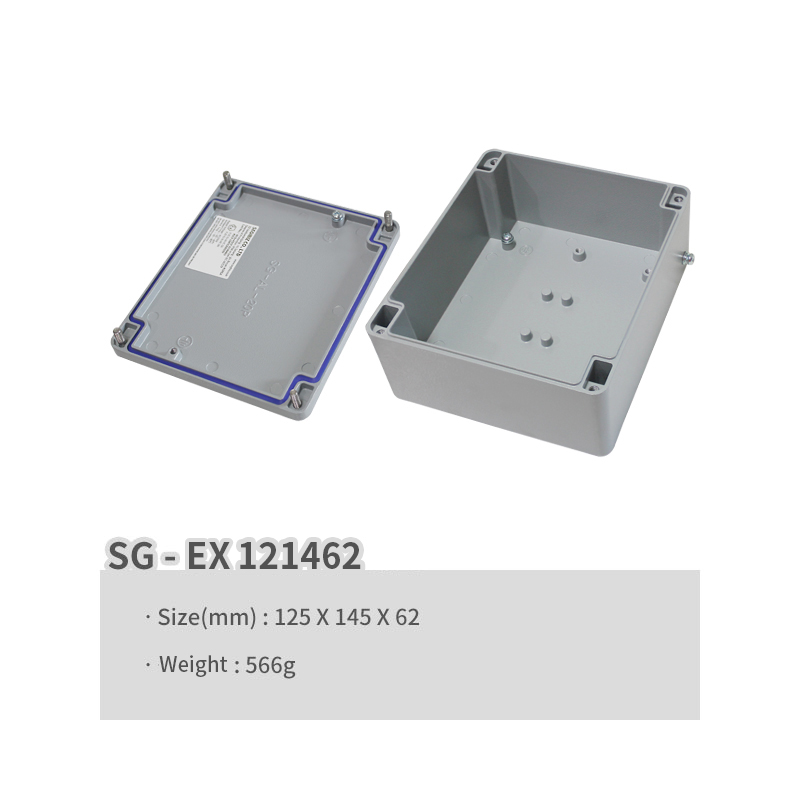

SG-EX121462 | 125 X 145 X 62 | 566 | View Pictures |

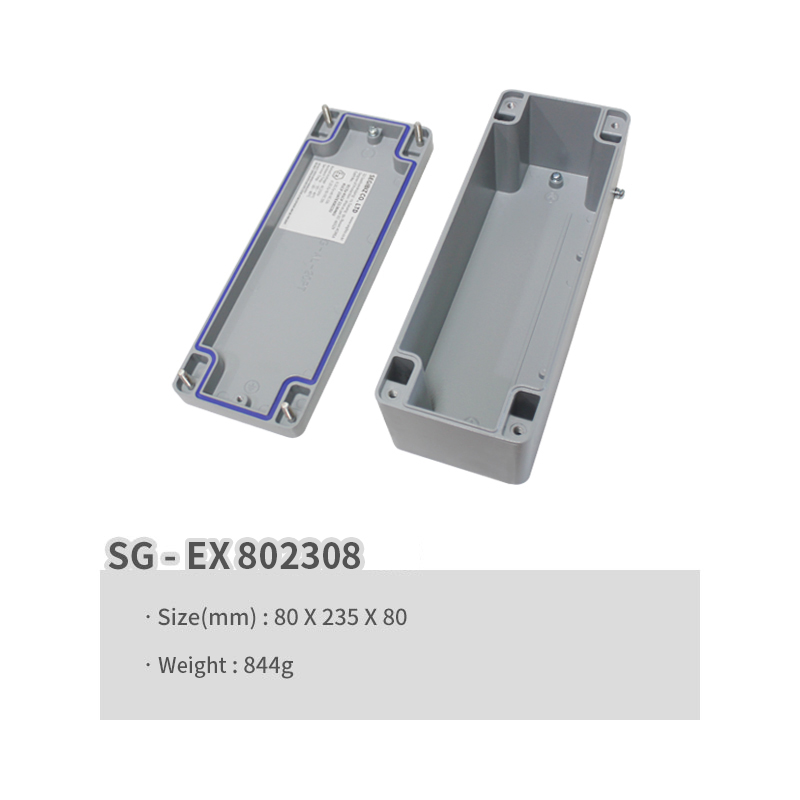

SG-EX802308 | 80 X 235 X 80 | 844 | View Pictures |

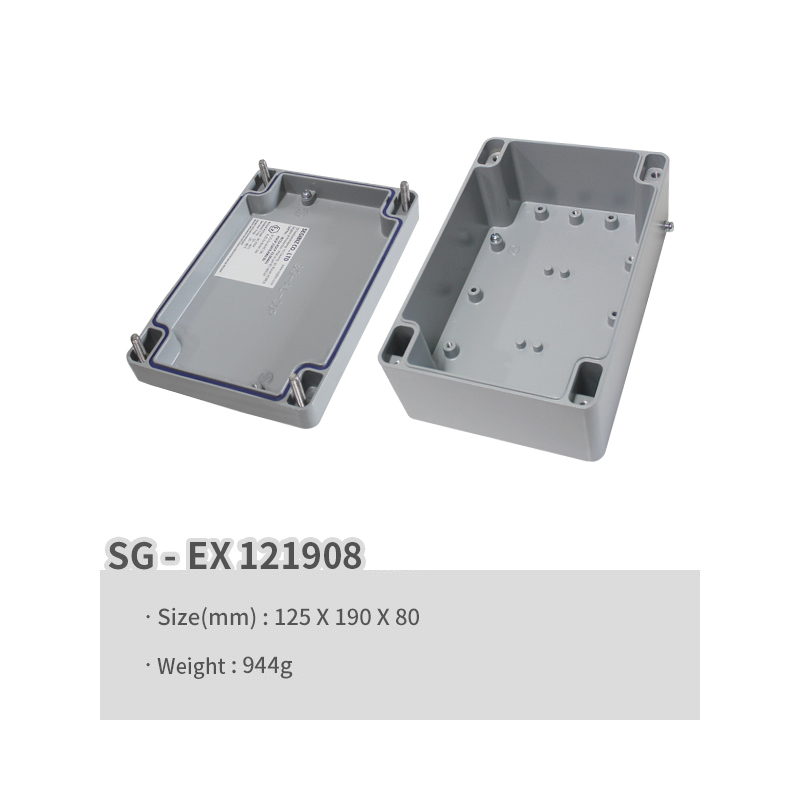

SG-EX121908 | 125 X 190 X 80 | 944 | View Pictures |

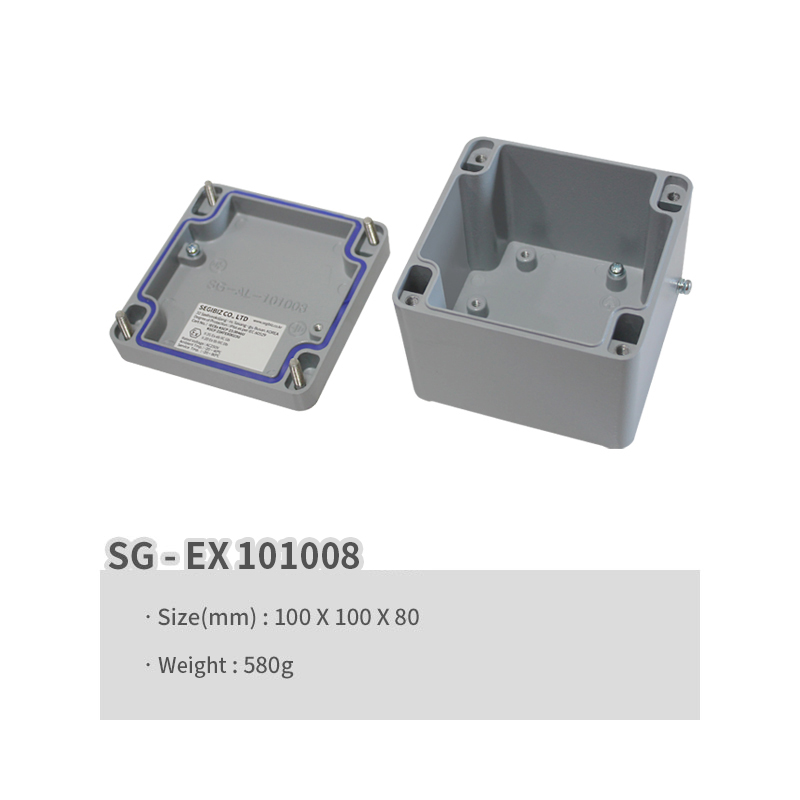

SG-EX101008 | 100 X 100 X 80 | 580 | View Pictures |

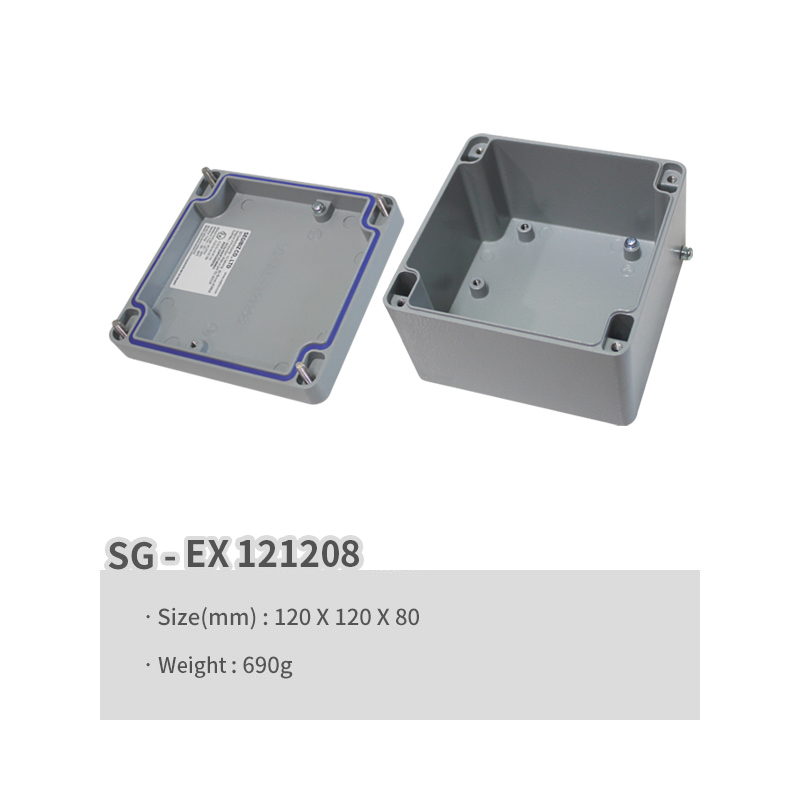

SG-EX121208 | 120 X 120 X 80 | 690 | View Pictures |

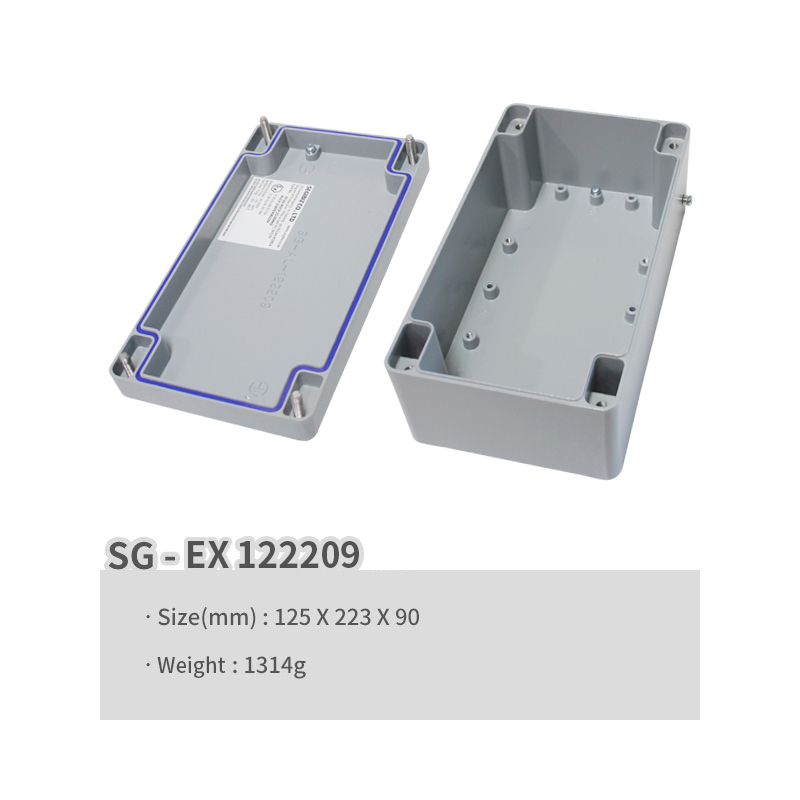

SG-EX122209 | 125 X 223 X 90 | 1314 | View Pictures |

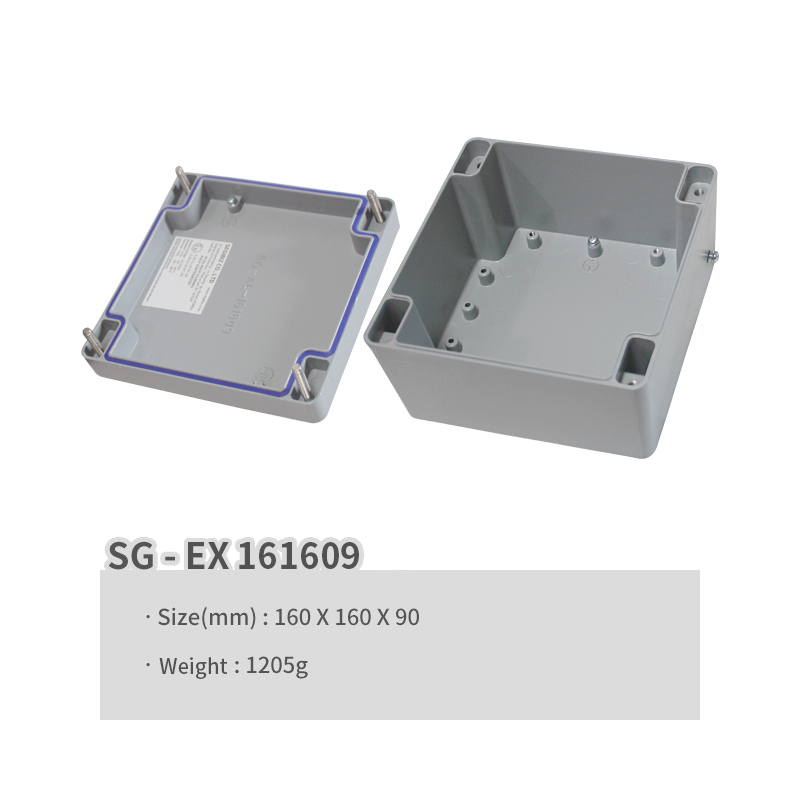

SG-EX161609 | 160 X 160 X 90 | 1205 | View Pictures |

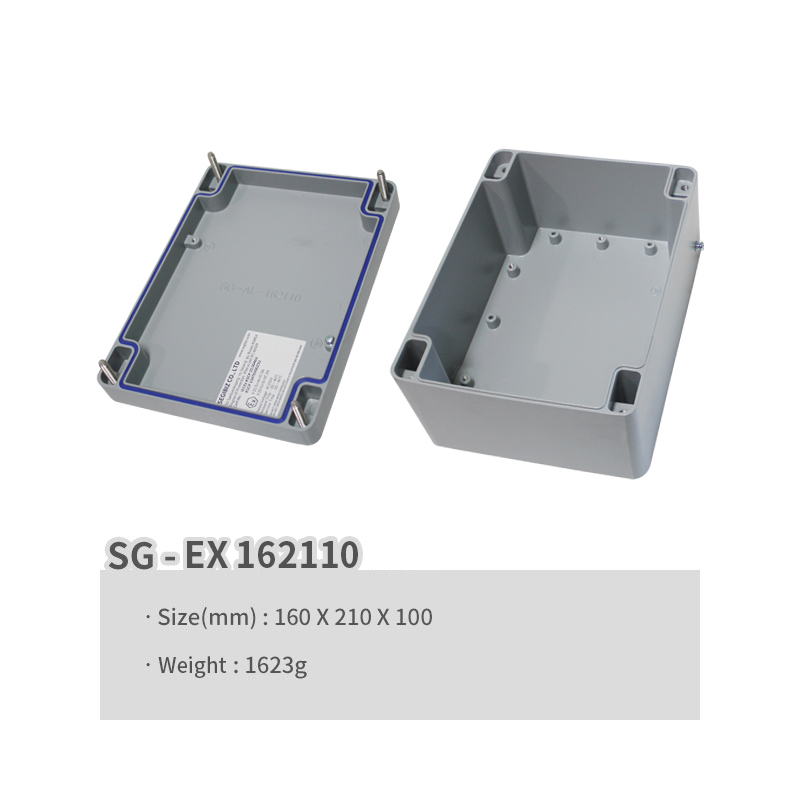

SG-EX162110 | 160 X 210 X 100 | 1623 | View Pictures |

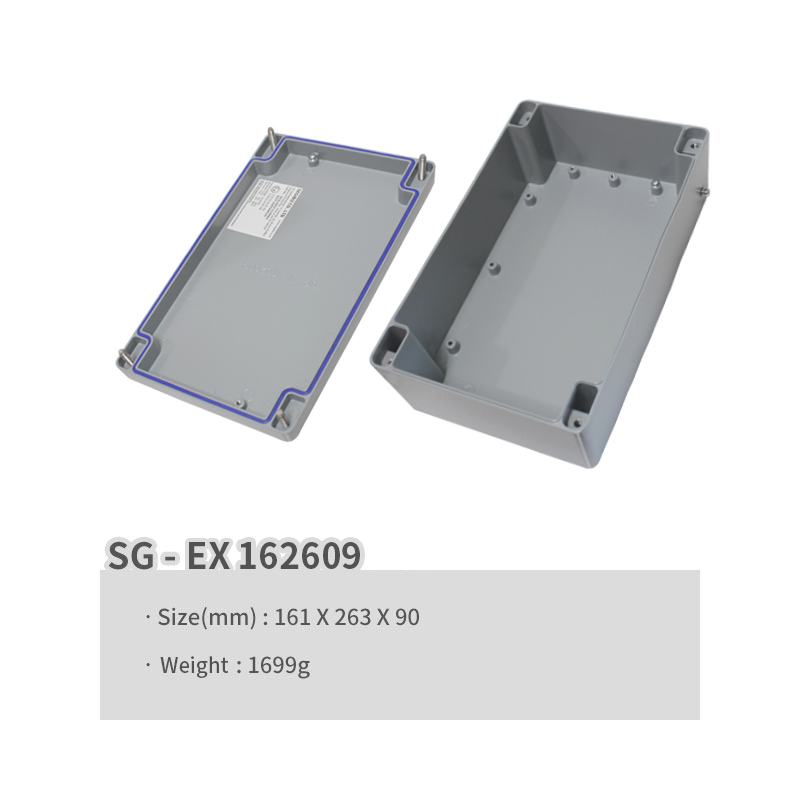

SG-EX162609 | 161 X 263 X 90 | 1699 | View Pictures |

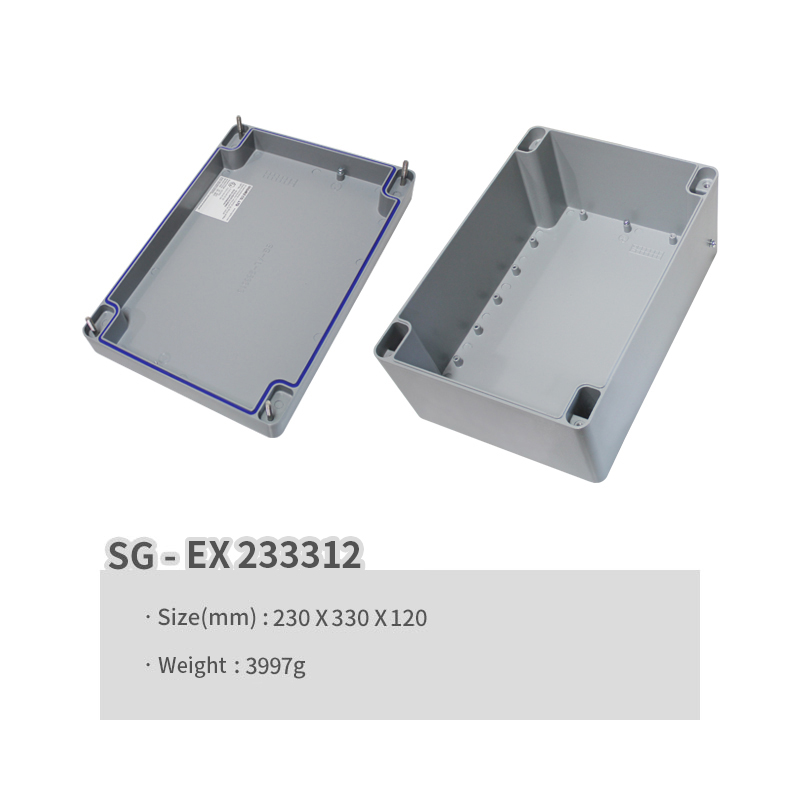

SG-EX233312 | 230 X 330 X 120 | 3997 | View Pictures |
