NFB Power Distribution Terminal Block
- Capacity 100A / 200A /400A available
- 100A can be used in common with 50A circuit breakers
- There are 4P / 6P / 8P
- Easy to work with direct link to main breaker
- Hinged protective cover prevents accidents such as electric shock in advance
- Space customized product with the same width as the breaker frame
- Certificates :
NFB terminal block type power distributor is an upgraded product of terminal block type power distributor. There is a link that can be directly connected to the main breaker, so it can be connected without the need for a separate terminal. The width of the product is the same as that of the breaker frame, so it can be used efficiently because it can save space. Heat-resistant material side plate is used to resist shock and heat, and PC material protection cover prevents electric shock and is designed for safe use. The busbar is coated with 99.9% copper with tin, so it has a higher conductivity than brass, so it can be used efficiently.

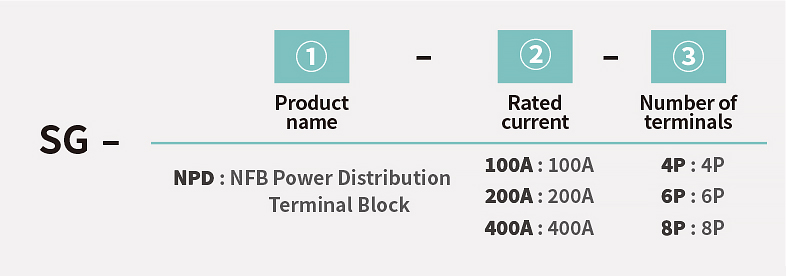

Nomenclature
- ① Product name : NFB Power Distribution Terminal Block
- ② Rated current : 100A / 200A / 400A
- ③ The Number of terminals : 4P / 6P / 8P
Product specifications
- Rated current : 100A (Available with 50A breaker) / 200A / 400A
- Pitch : 20mm / 30mm / 40mm
- Rated voltage : 600V
- Tolerance : ±1mm
- Operating Temperature : -20℃ ~ 110℃
- Materials : Side plate [mPPO] / Cover [PC]
99.9% Copper + Tin plated busbar
SG-NPD-100A
| Model | SG-NPD-100-4P | SG-NPD-100-6P |
| Rated voltage / current | 600V / 100A | |
| Pitch | 20mm | |
| IN Screw | Hole Ø9 | |
| OUT Screw | M4 X 2 , M5 X 2 | M4 X 6 |
| Busbar Size | 3t X 20mm | |

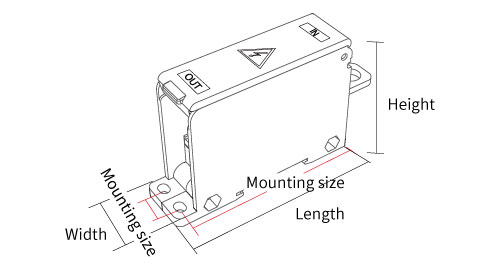

| Product Size | 25mm x 105mm x 58mm | |
| Mounting Size & hole | 12.4mm / Ø4.5 | |
| Weight(g) | 111g | Videos | View Video | View Video |
SG-NPD-200A
| Model | SG-NPD-200-4P | SG-NPD-200-6P | SG-NPD-200-8P |
| Rated voltage / current | 600V / 200A | ||
| Pitch | 30mm | ||
| IN Screw | Hole Ø9 | ||
| OUT Screw | M5 X 2 , M6 X 2 | M5 X 6 | M4 X 6 , M5 X 2 |
| Busbar Size | 3t X 30mm | ||
| Product Size | 35mm x 113mm x 58mm | ||
| Mounting Size & hole | 17.4mm / Ø4.5 | ||
| Weight(g) | 161g | Videos | View Video | View Video | View Video |
※ Available up to 250A
SG-NPD-400A
| Model | SG-NPD-400-6P | SG-PD-400-8P |
| Rated voltage / current | 600V / 400A | |
| Pitch | 40mm | |
| IN Screw | Hole Ø12.5 | |
| OUT Screw | M8 X 6 | M8 X 2 , M6 X 6 |
| Busbar Size | 4t X 40mm | |
| Product Size | 45mm x 185mm x 80mm | |
| Mounting Size & hole | 22mm / Ø5.5 | |
| Weight(g) | 397g | 382g | Videos | View Video | View Video |
