AUCS Series Heavy Duty Industrial Warning Light
A self-supporting model consisting of an integrated warning/flashing light and signal horn for heavy ship equipment with a sealed structure that has excellent waterproofing and corrosion resistance.
- Heavy duty industrial 125mm Warning Light and Electronic Horn
- 3 types of light sources can be chosen, based on installation purpose
- Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
- Classified into one-way (25W) / two-way (50W) , depending on output
- Material : Body [ Aluminum (AC7A) ], Globe [ GPPS, PC ], Electronic Horn [ ABS ]
- Standard body color : MUNSELL NO.7.5G / 7.2
- Operating Temperature : -25 ~ 50℃

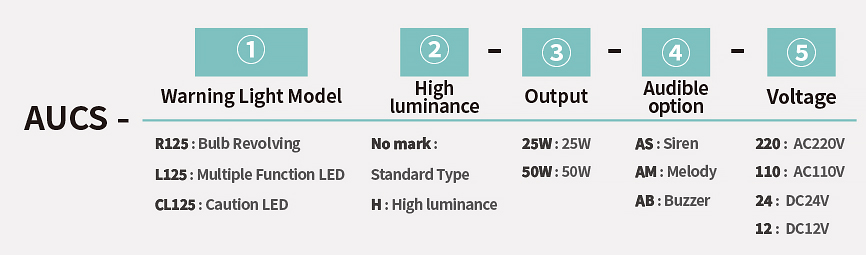

Nomenclature
Icon Description and Product Diagram
| Icon Description | |||
| Light Source | Operation | Sound | Option |
|
|
|
|
Strobe (Flash) type
Maximum volume
Voice
Magnet mounted type

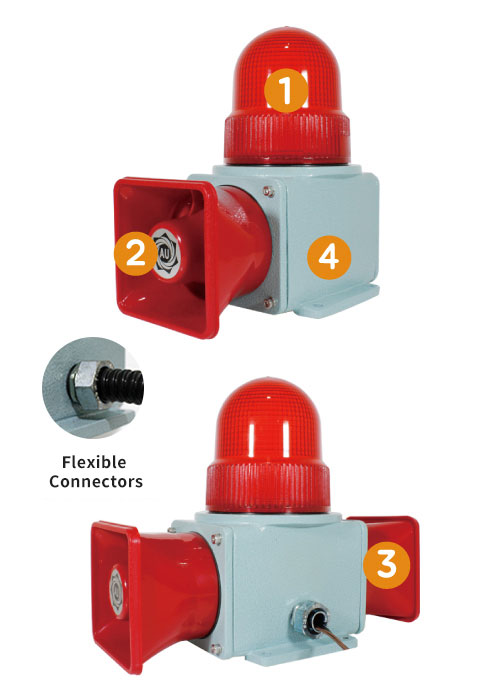

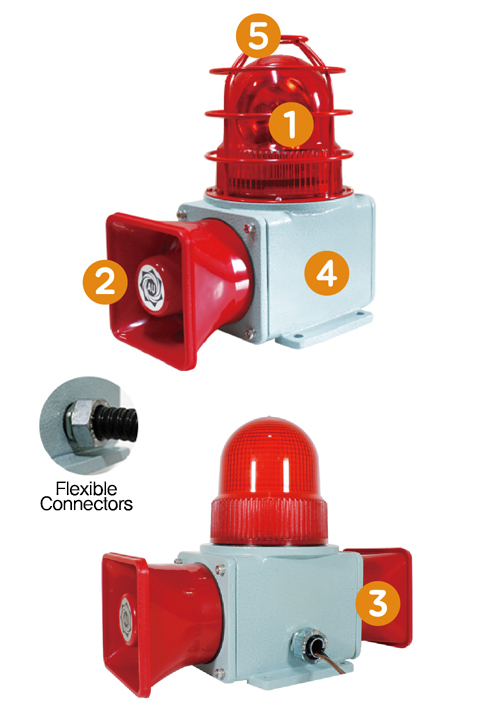

Protective netAUCS Series Product Diagram
1 Light Source Selection
| Light Source & Function | ||
 |
 |
 |
| Bulb Revolving | Multiple Function LED ( Steady / Flashing / Rotation / Rotation – Flashing ) |
Caution LED |
2 Audible Option Selection
◎ Three tones can be used to suit the purpose: siren, melody, and buzzer.
| Volume | Channel | Audible option | |
| Max. 115dB | CH 1 | Siren AS | Fire |
| CH 2 | Emergency | ||
| CH 3 | Urgent | ||
| CH 1 | Melody AM | The Magic Flute | |
| CH 2 | Home Sweet Home | ||
| CH 3 | Fur Elise | ||
| CH 1 | Buzzer AB | bee bee bee bee | |
| CH 2 | Ding dong | ||
| CH 3 | bee ~ bee ~ bee | ||
4 Fully enclosed structure
◎ Highly durable aluminum housing is excellent waterproofing and dust-proofing

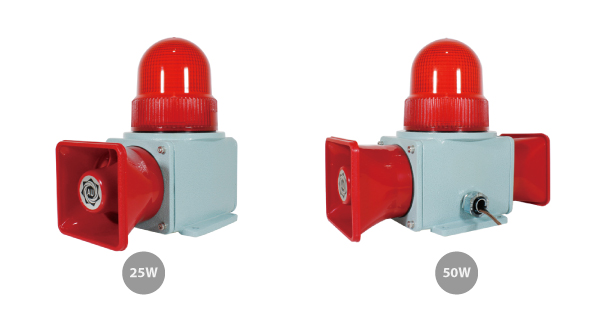

3 Max. Output & Horn Direction
◎ One-way Horn : 25W / Two-way Horn : 50W
Model Specifications
AUCS-R125AUCS-L125AUCS-CL125
AUCS-R125
- Heavy Duty Industrial Bulb Revolving Warning Light & Electronic Horn Combinations (Ø125mm)
- Maximum volume : 115dB
- Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | Current consumption | Bulb | Weight |
|---|---|---|---|---|
| AUCS-R125-25W (one way) |
AC 110V | 0.21 (A) | 12V 15W | 3760 g |
| AC 220V | 0.12 (A) | 12V 15W | 3760 g | |
| DC 12V | 1.50 (A) | 12V 15W | 3697 g | |
| DC 24V | 0.90 (A) | 24V 15W | 3735 g |
| MODEL | Rated voltage | Current consumption | Bulb | Weight |
|---|---|---|---|---|
| AUCS-R125-50W (two way) |
AC 110V | 0.26 (A) | 12V 15W | 4659 g |
| AC 220V | 0.17 (A) | 12V 15W | 4659 g | |
| DC 12V | 1.64 (A) | 12V 15W | 4594 g | |
| DC 24V | 0.98 (A) | 24V 15W | 4594 g |
Technical Diagram
AUCS-L125
- Heavy Duty Industrial Multiple Function LED Warning Light & Electronic Horn Combinations (Ø125mm)
- Maximum volume : 115dB
- Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|---|
| AUCS-L125-25W (one way) |
AC 110V | 0.17 (A) | 54EA | 3390 g |
| AC 220V | 0.11 (A) | 54EA | 3390 g | |
| DC 12V | 0.47 (A) | 54EA | 3097 g | |
| DC 24V | 0.45 (A) | 54EA | 3105 g |
| MODEL | Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|---|
| AUCS-L125-50W (two way) |
AC 110V | 0.22 (A) | 54EA | 4272 g |
| AC 220V | 0.14 (A) | 54EA | 4272 g | |
| DC 12V | 0.61 (A) | 54EA | 3979 g | |
| DC 24V | 0.56 (A) | 54EA | 3987 g |
Technical Diagram
AUCS-CL125
- Heavy Duty Industrial Caution LED Warning Light; Electronic Horn Combinations (Ø125mm)
- Maximum volume : 115dB
- Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B)
| MODEL | Rated voltage | Weight |
|---|---|---|
| AUCS-CL125-25W (one way) |
AC 110V | 3091 g |
| AC 220V | 3091 g | |
| DC 12V | 3079 g | |
| DC 24V | 3079 g |
| MODEL | Rated voltage | Weight |
|---|---|---|
| AUCS-CL125-50W (two way) |
AC 110V | 4112 g |
| AC 220V | 4112 g | |
| DC 12V | 4085 g | |
| DC 24V | 4085 g |
Technical Diagram
