전구아이콘led 아이콘  AUMS Series

Heavy Duty Industrial Warning Light

View Catalog
Wall mounted Warning Light & Electronic Horn Combinations for Heavy Industry Applications
  • Wall mounted model configured with heavy duty industrial integral Warning Light & Electronic Horn
  • Tone is changeable conveniently with the switch
  • Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
  • Convenient line connection with the terminal box
  • Material : Body [ Aluminum (AC7A) ] , Globe [ GPPS, PC ] Electronic Horn [ ABS ]
  • Standard body color : MUNSELL NO. 7.5G / 7.2
  • Operating Temperature : -25℃ ~ 50℃

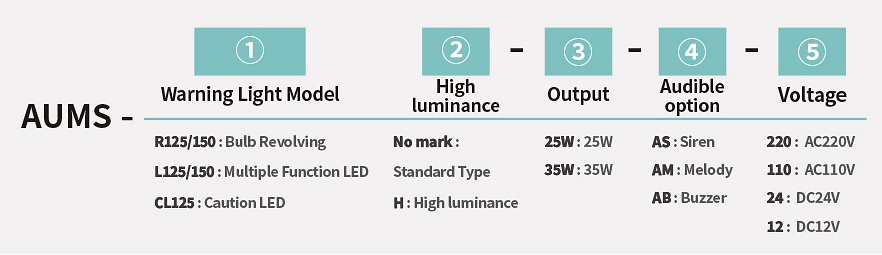

Nomenclature



Icon Description and Product Diagram
AUMS Series Common Specifications
AUMS 타입
1 A Variety of Selectable Light Source
       & Function Combinations
Light Source & Function Globe Outer Diameter
Bulb Revolving

125mm

150mm

Multiple Function LED
( Steady / Flashing / Revolcing / Flashing-revolving )
Caution LED

125mm

2 Audible Option Selection

◎ Three tones can be used to suit the purpose: siren, melody, and buzzer.

Volume Channel Audible option
Max. 115dB CH 1 Siren AS Fire
CH 2 Emergency
CH 3 Urgent
CH 1 Melody AM The Magic Flute
CH 2 Home Sweet Home
CH 3 Fur Elise
CH 1 Buzzer AB bee bee bee bee
CH 2 Ding dong
CH 3 bee ~ bee ~ bee
3Body

◎ Highly durable aluminum housing is used and has excellent waterproofing and dustproofing effects.

◎ Convenient line connection with the terminal box installed at the bottom of the product

4External tone switch

◎ Change the tone with a switch attached to the outside.

5Protection net

◎ Protective net installed outside the grove to prevent damage to the grove due to impact. Available as optional option

6High Luminance Type

◎ High luminance type is available for excellent radiance effect



Model Specifications
Ø125 Ø150
AUMS-R125

전구아이콘회전

AUMS-R150

전구아이콘회전

AUMS-L125

led아이콘점등점멸회전고휘도

AUMS-L150

led아이콘점등점멸회전고휘도

AUMS-CL125

led아이콘섬광

AUMS-125 SeriesAUMS-150 Series
AUMS 전구아이콘회전
AUMS-R125 / Bulb reflector rotating warning light & signal horn integrated
  • Ø125mm marine heavy equipment light bulb reflector rotating warning light & signal horn integrated type
  • There are 2 types depending on output: 25W / 35W
  • Number of rotations: Randomly adjusted
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-R125-25W AC110V 0.21 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 12V 15W 4720 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.12 (A)
DC12V 1.50 (A) 4153 g
DC24V 0.87 (A) 24V 15W
AUMS led아이콘점등점멸회전고휘도
AUMS-L125 / Multi-functional LED warning light & signal horn integrated
  • Ø125mm multi-functional warning light & signal horn integrated for heavy equipment on ships
  • There are 2 types depending on output: 25W / 35W
  • Two types of LED units: standard and high brightness
  • Using a microchip, you can select 4 actions (Steady / Flashing / rotating / rotating-Flashing)
  • Number of rotations: Randomly adjusted
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-L125-25W AC110V 0.17 (A) Siren 3 Sound
Melody 3 Sound
Buzzer 3 Sound
Max. 115dB 54EA 4250 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.11 (A)
DC12V 0.48 (A) 3957 g
DC24V 0.45 (A) 4165 g
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-L125H-25W AC110V 0.19 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 90EA 4270 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.12 (A)
DC12V 0.57 (A) 3977 g
DC24V 0.55 (A) 4185 g
AUMS led아이콘섬광
AUMS-CL125 / CAUTION LED flashing light & signal horn integrated
  • Ø125 mm CAUTION LED strobe & signal horn integrated type for heavy equipment on ships
  • There are 2 types depending on output: 25W / 35W
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   blue (B) ●
MODEL Voltage Tone Volume Weight Color
AUMS-CL125-25W AC110V Siren 3 sound
Melody 3 sound
buzzer 3 sound
Max. 115dB 4052 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V
DC12V 3452 g
DC24V
AUMS 전구아이콘회전
AUMS-R150 / Bulb reflector rotating warning light & signal horn integrated type
  • Ø150 mm marine heavy equipment bulb reflector rotating warning light & signal horn integrated type
  • There are 2 types depending on output: 25W / 35W
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-R150-25W AC110V 0.21 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 12V 15W 5290 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.12 (A)
DC12V 1.50 (A) 4723 g
DC24V 0.87 (A) 24V 15W
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-R150H-25W AC110V 0.22 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 12V 35W 5316 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.13 (A)
DC12V 3.20 (A) 4749 g
DC24V 1.74 (A) 24V 35W
AUMS led아이콘점등점멸회전고휘도
AUMS-L150 / Multi-functional LED warning light & signal horn integrated
  • Ø150mm Multi-functional LED warning light & signal horn integrated for heavy equipment on ships
  • There are 2 types depending on output: 25W / 35W
  • Two types of LED brightness: standard and high brightness.
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-L150-25W AC110V 0.17 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 54EA 4840 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.11 (A)
DC12V 0.48 (A) 4547 g
DC24V 0.45 (A) 4755 g
MODEL Voltage Current Tone Volume LED EA Weight Color
AUMS-L150H-25W AC110V 0.19 (A) Siren 3 sound
Melody 3 sound
Buzzer 3 sound
Max. 115dB 90EA 4860 g Red (R)
Yellow (Y)
Green (G)
Blue (B)
AC220V 0.12 (A)
DC12V 0.57 (A) 4567 g
DC24V 0.55 (A) 4775 g

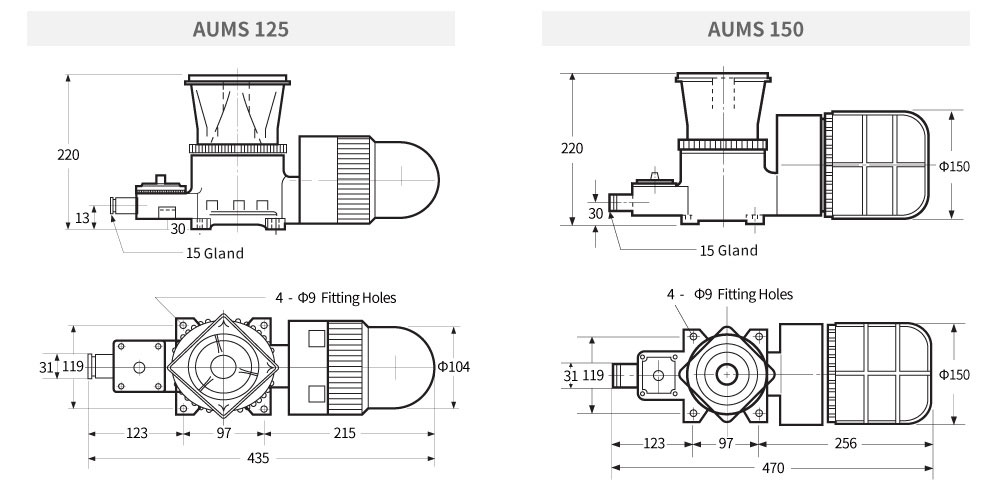

Technical Diagram
