AUP-EWH Electronic Horn


View Catalog

  • 3 siren sounds, 3 melody sounds, and 3 buzzer sounds can be selected according to the operator’s purpose
  • The device is equipped with a volume switch for easier volume adjustment
  • The device is equipped with a timbre switch for easier timbre change
  • Light and solid manufacturing
  • Buzzer volume : Max. 115~120dB
  • Material : ABS
  • Operating Temperature : -25℃ ~ 50℃

Product specifications



  • 25W/35W of maximum output is available (15W of maximum output can be ordered)
  • 4 sounds, including melodies and Piano Sonata, and 4 sounds including buzzer and bee~~~bee~~~ sounds can be ordered
25W
MODEL Audible Option Volume Voltage &
Current
Weight(g)
CH Tone
AUP-EWH-25 A1 Siren AS Fire.A-ANG Max.115dB

AC110V/220V compatible
0.113A

DC 12V : 2.21A

DC 24V : 1.02A

AC : 1174g

DC : 1122g

A2 Ambulance PI-PO
A3 Emergency WA-U
A1 Melody AM The Magic Flute
A2 Home Sweet Home
A3 Fur Elise
A1 Buzzer AB beep beep beep beep
A2 Ding Dong
A3 beep ~ beep ~ beep


35W
MODEL Audible Option Volume Voltage &
Current
Weight(g)
CH Tone
AUP-EWH-35 A1 Siren AS Fire.A-ANG Max.120dB

AC110V/220V compatible
0.122A

DC 12V : 2.44A

DC 24V : 1.19A

AC : 1431g

DC : 1379g

A2 Ambulance PI-PO
A3 Emergency WA-U
A1 Melody AM The Magic Flute
A2 Home Sweet Home
A3 Fur Elise
A1 Buzzer AB beep beep beep beep
A2 Ding Dong
A3 beep ~ beep ~ beep

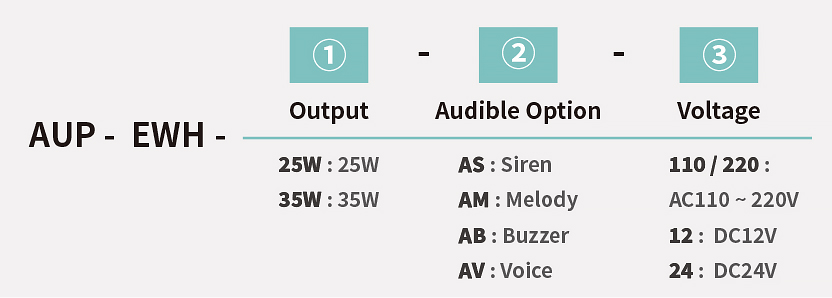

Technical Diagram
