led 아이콘  AUP – EWM Series  Heavy Duty Electronic Horn

  View Catalog
  • Aluminum housing structure with excellent durability
  • Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
  • It is divided into three types according to the housing: A type, B type, and C type
  • Material : Aluminum housing + ABS Signal Horn
  • Operating Temperature: -25°C ~ 50°C
Product specifications

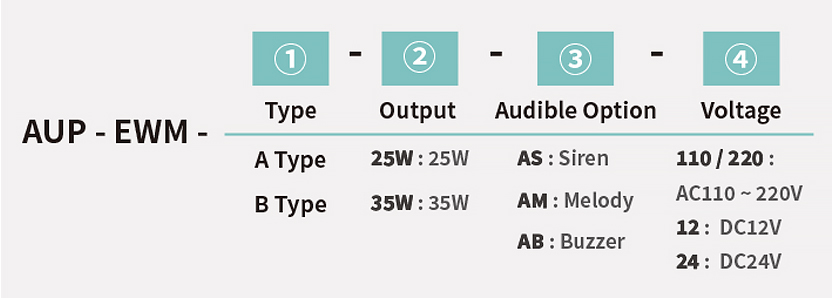

AUP-EWM-A

◎ A cable gland is equipped on the housing terminal box

◎ 25W / 35W two types of maximum outputs are available

MODEL Output Audible Option Volume Current Weight
AUP-EWM-A 25W Siren(AS) Max. 115dB AC 110V / 220V compatible
DC 12V
DC 24V
AC : 3067g
DC : 3040g
Melody(AM)
Buzzer(AB)
35W Siren(AS) Max. 120dB AC 110V / 220V compatible
DC 12V
DC 24V
AC : 3324g
DC : 3297g
Melody(AM)
Buzzer(AB)









AUP-EWM-B-25W

◎ The housing is equipped with a flexible connector

◎ 25W of maximum output is available

MODEL Output Audible Option Volume Current Weight
AUP-EWM-B 25W Siren(AS) Max. 115dB AC 110V / 220V compatible
DC 24V
AC : 2121g
DC : 2101g
Melody(AM)
Buzzer(AB)

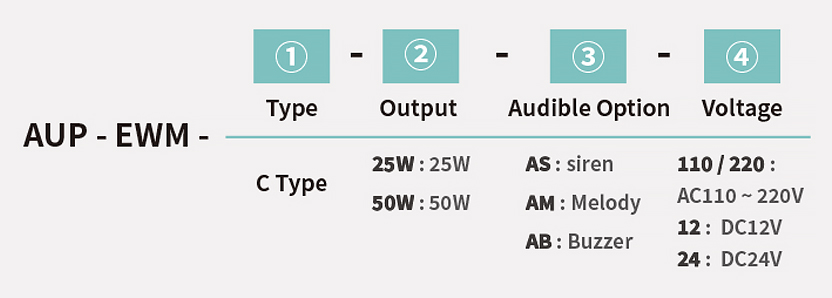

AUP-EMW-C 25W

◎ The housing is equipped with a flexible connector

◎ One-way 25W of maximum output, with attached Electronic Horn

MODEL Embedded sound Volume Current Weight
Channel Audible Option
AUP-EWM-C-25W
(one way)
A1 Siren(AS) Fire Max. 115dB AC 110V / 220V compatible
DC 12V
DC 24V
AC : 2796g
DC : 2771g
A2 Emergency
A3 Urgent
A1 Melody(AM) The Magic Flute
A2 Home Sweet Home
A3 For Elise
A1 Buzzer(AB) bee bee bee bee
A2 Ding dong
A3 bee ~ bee ~ bee







AUP-EMW-C 50W

◎ The housing is equipped with a flexible connector

◎ Two-way 50W of maximum output, with attached Electronic Horn

◎ With high capacity, suitable for places with loud noise or that require left and right direction

MODEL Embedded sound Volume Current Weight
Channel Audible Option
AUP-EWM-C-50W
(two way)
A1 Siren(AS) Fire Max. 120dB AC 110V / 220V compatible AC : 3679g
DC : 3628g
A2 Emergency
A3 Urgent
A1 Melody(AM) The Magic Flute
A2 Home Sweet Home
A3 For Elise
A1 Buzzer(AB) bee bee bee bee
A2 Ding dong
A3 bee ~ bee ~ bee
