AUHP SeriesHeavy Duty Industrial Warning Light
Special Order LED Warning Light & Electronic Horn
- Effectively usable with LED Warning Light and Electronic Horn integrated configuration
- From among LED Ø100 – Ø150 models, two can be combined
- Applicable for indicating device malfunction, material supply and stop signals, and signal transmission in automation line.
- Consist of 8 channels usable according to the user’s selection.
- Volume is adjustable with external volume controller.
- Body color : gray or ivory
- Please contact us to order optional products.
- Material: Body [SUS] / Warning Light [ABS,SUS] / Globe [GPPS,PC] / Electronic Horn [ABS]
- Operating Temperature : -25 ~ 50℃
Icon Description and Product Diagram
| Icon Description | |||
| Light Source | Operation | Sound | Option |
|
|
|
|
Incandescent bulb
Siren sound
Voice
Magnet mounted type
Protective net
Product Combination Configuration
- Color : Red (R) ● Yellow (O) ● Green (G) ● Blue (B) ●
| Warning Light L1 | Warning Light L2 | Operation | Electronic Horn | ||
|---|---|---|---|---|---|
| AUW-L100 | AUW-L100 | 1 | 2 | AUP-EWH-25W | |
| AUW-L125 | AUW-L125 | Steady – Flashing | |||
| AUW-L150S | AUW-L150S | Flashing – Rotation | |||
4 audible option sounds
| CH 1 | CH 2 | CH 3 | CH 4 |
|---|---|---|---|
| Home Sweet Home | Fur Elise | Turkish March | Piano Sonata |

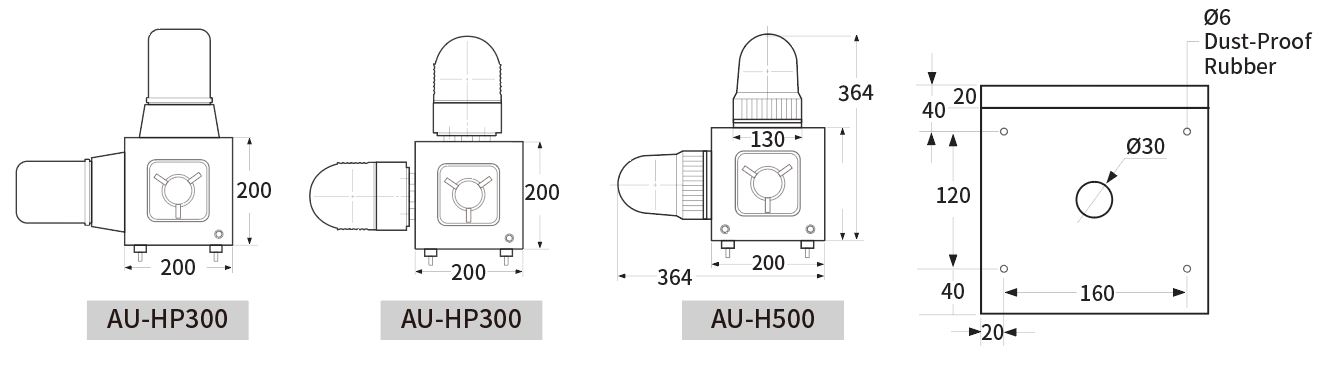

Technical Diagram

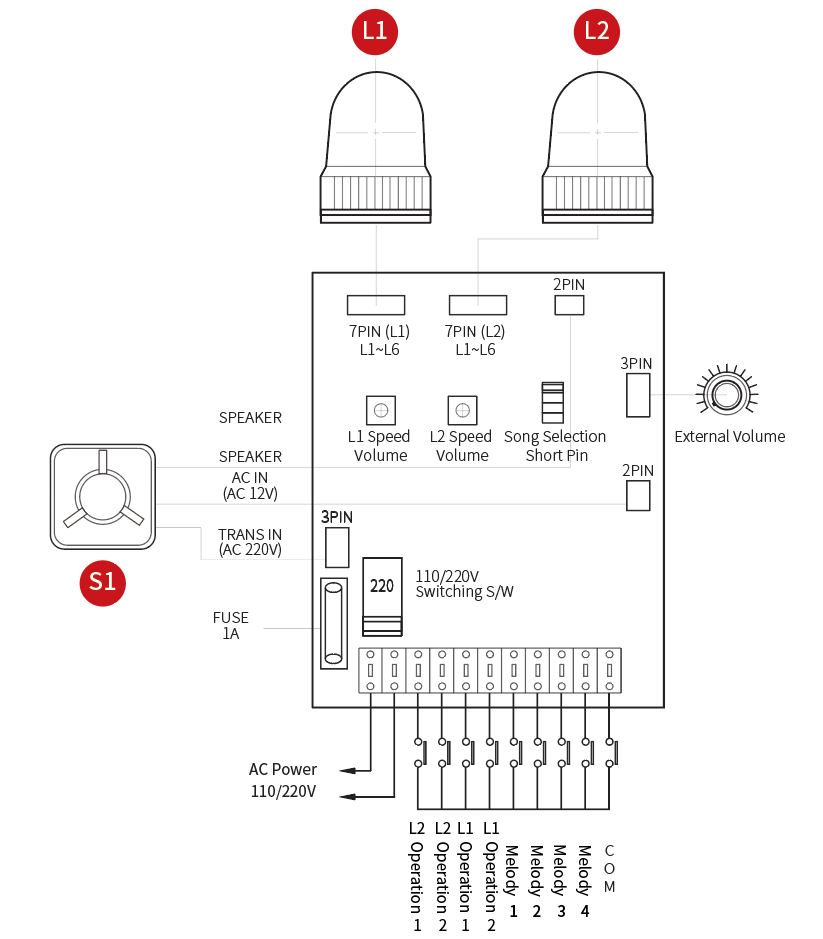

Product Wiring Diagram
.jpg
)
