Like the basic type aluminum profile box, the product length, special hole processing, and laser marking enable upper nameplate work. In particular, the profile inclined box has an inclined top and is a good shape for horizontal use, and it is a push button that enhances user convenience and aesthetics.

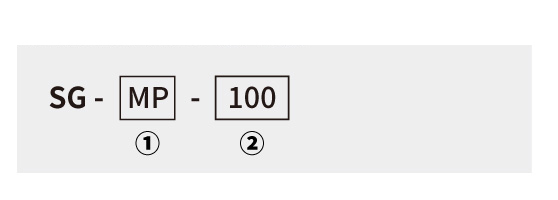

Nomenclature
  • Product name : Multi Pentagon Box
  • Product length : 100 – 3,800mm



Product feature
  • Made of aluminum profile, lightweight and sturdy.
  • It is manufactured in an inclined type with excellent aesthetics and can be used for various purposes such as length, perforation, laser nameplate marking, etc. upon request from the customer.
  • Easy connection and installation by opening the box with only two bolts
  • There are also push button products with perforations on the top
View Catalog



Product specifications
  • Color : Body – Gray (Anodizing) / Side Plate – Orange
  • Tolerance : ±1mm
  • Operating Temperature : -20℃ ~ 70℃
  • Materials : Aluminum Profile / Side plate [ABS]






It is a product of inclined aluminum profile push button box.

Nomenclature
  • Product Name : Multi Pentagon Box
  • Hole size : Ø22 / Ø25 / Ø30
  • The number of holes : 1 hole / 2 holes / 3 holes / 4 holes / 5 holes /
          6 holes
hole Model Size (mm)
Ø Width Height length
1hole
  • SG-MP-2201
  • SG-MP-2501
  • SG-MP-3001
22 70mm 70mm 90mm
25
30
2hole
  • SG-MP-2202
  • SG-MP-2502
  • SG-MP-3002
22 70mm 70mm 145mm
25
30
3hole
  • SG-MP-2203
  • SG-MP-2503
  • SG-MP-3003
22 70mm 70mm 200mm
25
30
4hole
  • SG-MP-2204
  • SG-MP-2504
  • SG-MP-3004
22 70mm 70mm 255mm
25
30
5hole
  • SG-MP-2205
  • SG-MP-2505
  • SG-MP-3005
22 70mm 70mm 310mm
25
30
6hole
  • SG-MP-2206
  • SG-MP-2506
  • SG-MP-3006
22 70mm 70mm 365mm
25
30
