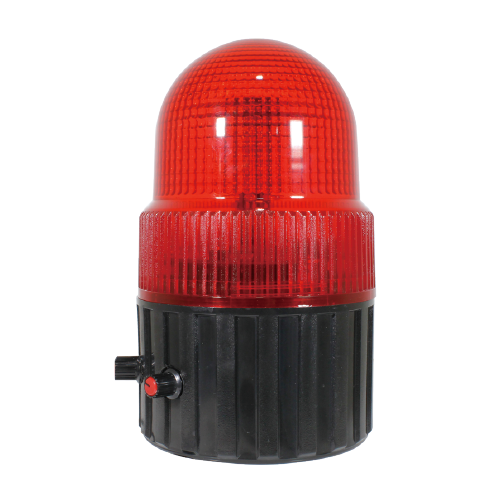

AUW-CL SeriesCaution LED Warning Light
- With the application of the Power LED, the visibility is excellent even in dark places
- Suitable for signal transmission of cleaning trucks, forklifts, roads, and subway construction
- Lighting / Blinking / Strobe 1, 2, 3, 4 functions can be selected and
applied according
to the site - Due to strobe characteristics, ambient ventilation is excellent
- The built-in tone is 3 notes
- Max. 90dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
- Material : Globe [GPPS], Body [ABS]
- Operating Temperature : -25 ~ 50℃

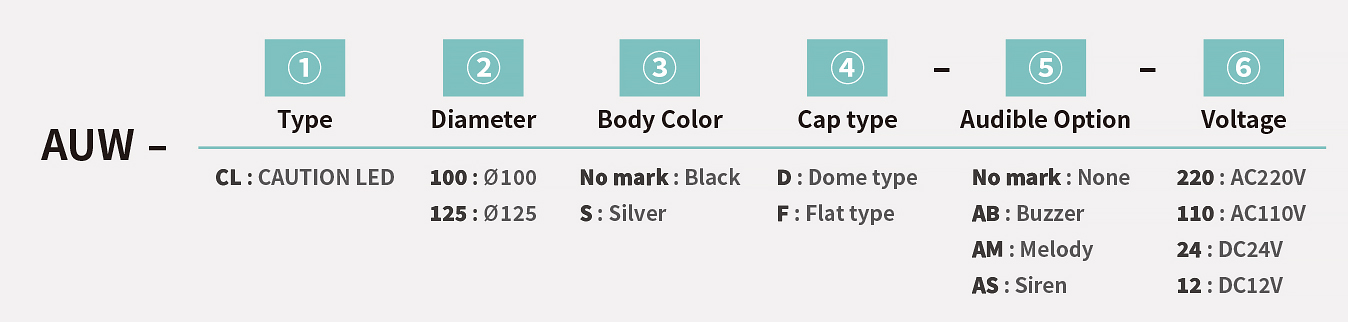

Icon Description and Product Configuration
| Icon Description | |||
| Light Source | Operation | Sound | |
|
|
|
|
Incandescent bulb
Revolving type
Product specifications
AUW-CL100AUW-CL125AUW-CL125L
AUW-CL100
- Ø100mm, small LED light
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL100 | AC110V / 220V | 260g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 240g |
AUW-CL125
- Outer diameter 125mm standard LED light
- Magnet attachment option and vehicle cigar jack option available (DC12 V only)
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL125 | AC110V / 220V | 328g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 303g |
AUW-CL125L
- Outer diameter 125mm long body standard LED light
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL125L | AC110V / 220V | 467g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 442g |
Embedded buzzer specifications
- Basic 3 notes
- Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
| Output | Tone | |
|---|---|---|
| Max. 80dB | Buzzer AB | Beep~~~Beep |
| beep ~ beep ~ beep | ||
| Wing Wing Wing | ||
| Melody AM | Fur Elise | |
| Home Sweet Home | ||
| London Bridge is Falling Down | ||
| Siren AS | Urgent | |
| Emergency | ||
| Fire | ||
