Magnet option & Cigarette lighter plug option (for DC12V only) are available
Excellent radiant effect using special vacuum metallizing reflector
Freely adjustable rotation speed with built-in volume switch
Buzzer, siren, and melody sound can be built in at the same time as the rotating light (volume Max. 80dB / may be measured lower than the actual decibel depending on the surrounding environment)
Audible Option : 3 basic sounds
Can be adjusted between AC110V ↔ 220V using changeover switch in the product
Microchip-based structure is simple and not affected by external noise
Material: Globe [GPPS], Body [ABS]
Operating Temperature : -25 ~ 50°C
Default wire length: 300mm
Nomenclature
Product specifications
AUW-R100(R)AUW-R100(G)AUW-R100(Y)
AUW-R100
Ø100mm, small Bulb Revolving Warning Light
Audible Option : Buzzer, Siren, Melody
Magnet type & Cigarette lighter plug Option (for DC12V only) are available
Color: Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
MODEL
Rated Voltage
Current
Bulb
Weight(g)
AUW-R100
AC 110V
0.09 (A)
12V 10W
514 g
AC 220V
0.05 (A)
12V 10W
514 g
DC 12V
0.88 (A)
12V 10W
294 g
DC 24V
0.64 (A)
24V 10W
294 g
Embedded buzzer specifications
Basic 3 notes
Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
Output
Tone
Max. 80dB
Buzzer AB
Beep~~~Beep
beep ~ beep ~ beep
Wing Wing Wing
Melody AM
Fur Elise
Home Sweet Home
London Bridge is Falling Down
Siren AS
Urgent
Emergency
Fire

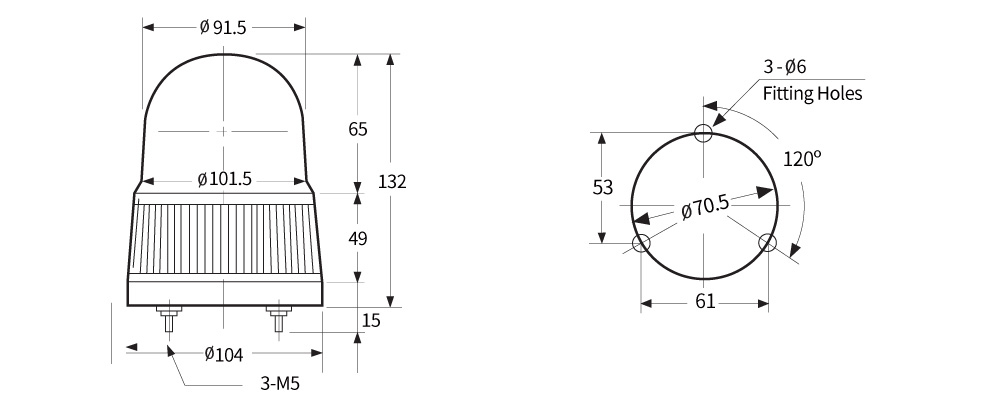

Technical Diagram
Product wiring diagram
Vertical bracket
Available for warning lights in sizes Ø80, Ø100, and Ø125. (Bulb/LED type)
AUW – R100Bulb Revolving Warning Light
AUW-R100
