AUW – R125LBulb Revolving Warning Light
- Ø125mm, standard Bulb Revolving Warning Light long body type
- Magnet option & Cigarette lighter plug option (for DC12V only) are available
- Excellent radiant effect using special vacuum metallizing reflector
- Freely adjustable rotation speed with built-in volume switch
- Buzzer, siren, melody, 3 sounds each. Buzzer can be built-in as standard, Attach braggette to the bottom (volume Max. 90dB at 1m)
- When a buzzer is built-in, a bracket is attached to the bottom.
- Voice sound (add voice signal function) can be ordered
- Can be adjusted between AC110V ↔ 220V using changeover switch in the product
- Microchip-based structure is simple and not affected by external noise
- Material: Globe [GPPS], Body [ABS]
- Operating Temperature : -25 ~ 50°C
- Default wire length: 300mm

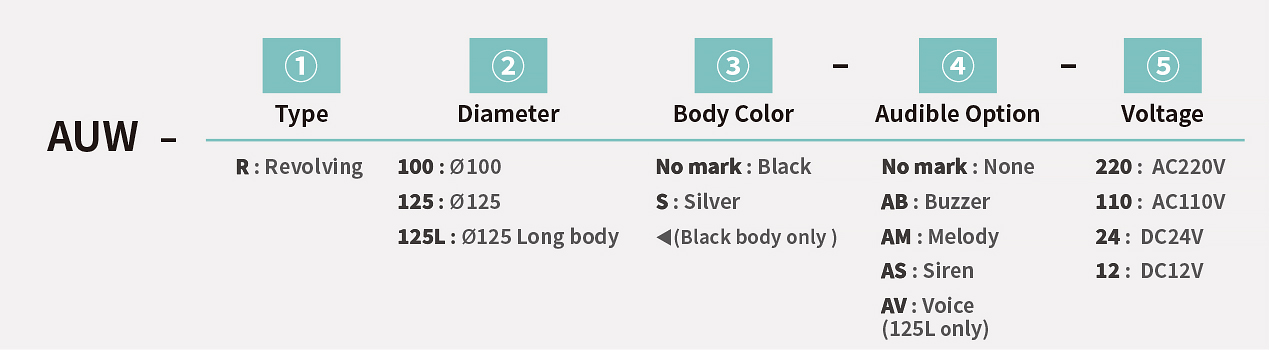

Ordering Information
Product specifications
부저 내장형(브라게트 장착)
AUW-R125L
- Ø125mm, standard Bulb Revolving Warning Light,long body type
- Audible Option : Buzzer, Siren, Melody
- Color : Red(R) ● Yellow (Y) ● Green (G) ● Blue(B) ●
| MODEL | Rated Voltage | Current consumption | Bulb | Weight(g) |
|---|---|---|---|---|
| AUW-R125L | AC 110V | 0.11 (A) | 12V 15W | 1124 g |
| AC 220V | 0.06 (A) | 12V 15W | 1124 g | |
| DC 12V | 1.19 (A) | 12V 15W | 547 g | |
| DC 24V | 0.74 (A) | 24V 15W | 547 g |
Embedded buzzer specifications
- Basic 3 notes
- Max. 90dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
| Output | Tone | |
|---|---|---|
| Max. 90dB | Buzzer AB | Beep~~~Beep |
| beep ~ beep ~ beep | ||
| Wing Wing Wing | ||
| Melody AM | Fur Elise | |
| Home Sweet Home | ||
| London Bridge is Falling Down | ||
| Siren AS | Urgent | |
| Emergency | ||
| Fire | ||

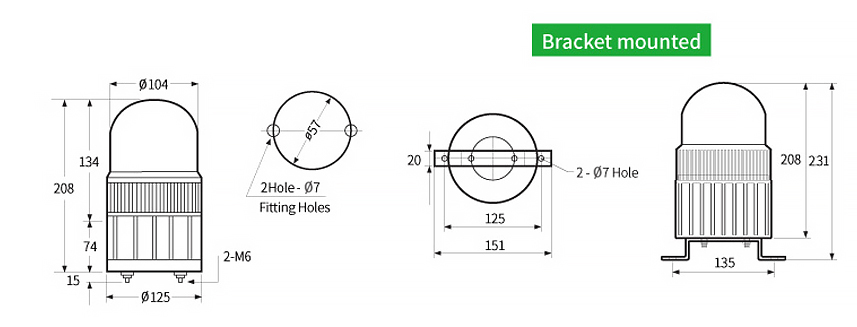

Technical Diagram

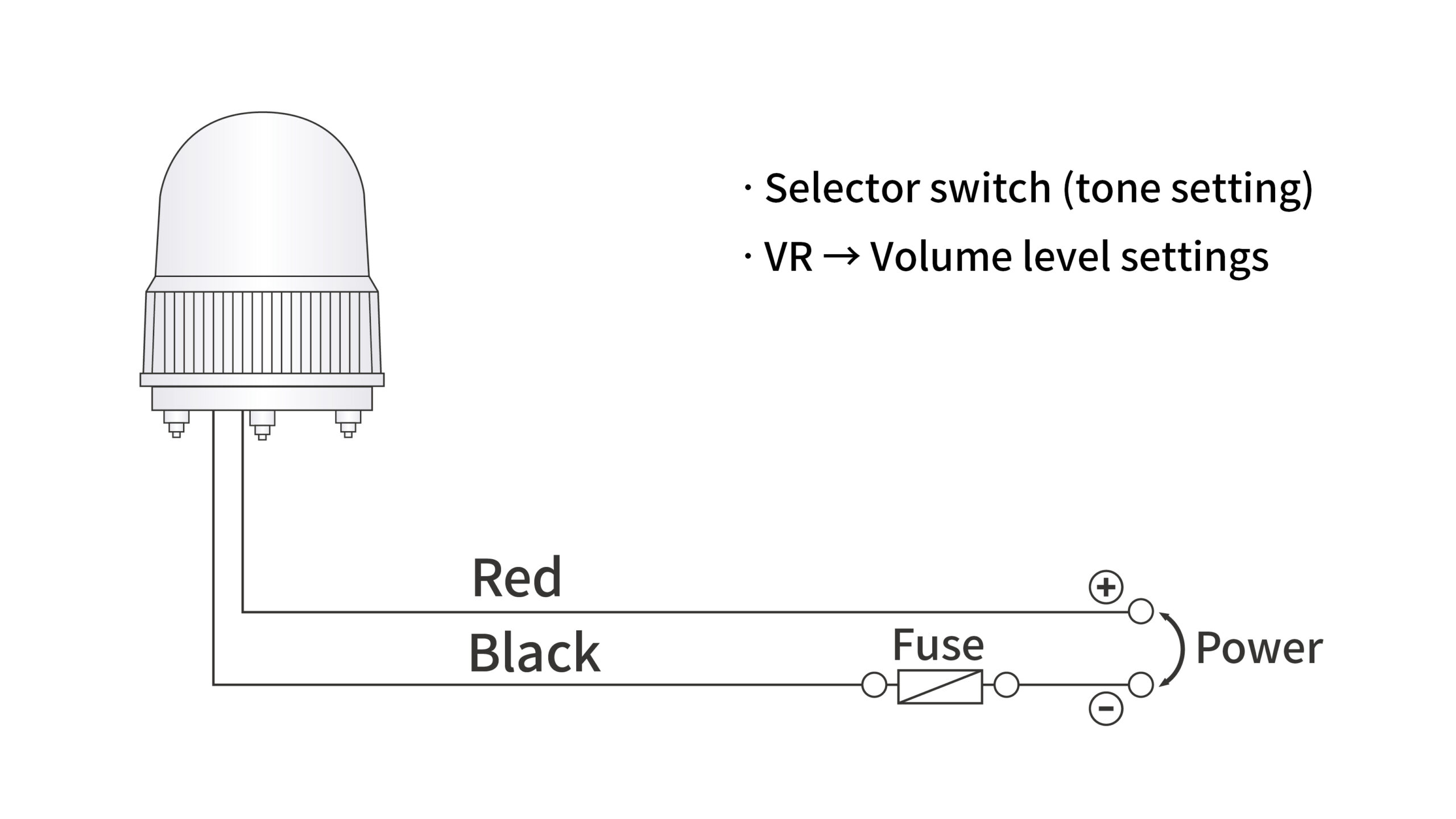

Product wiring diagram
