AUW – L100Multiple Function LED Warning Light
- Ø80mm, small Multiple Function LED Warning Light
- Suitable for use in places with severe vibration or difficult to change light bulbs
- Excellent radiant effect using high luminance LED elements
- Semi-permanent lifespan using electronic circuit board
- Can be adjusted between AC110V ↔ 220V by adjusting pins on the inner board of the product
- Magnet & Cigarette lighter plug option (for DC12V only) are available
- The built-in tone is 3 notes
- Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
- Material : Globe [GPPS] / Body [ABS]
- Operating Temperature :-25℃ ~ 50℃
- Default wire length: 300mm

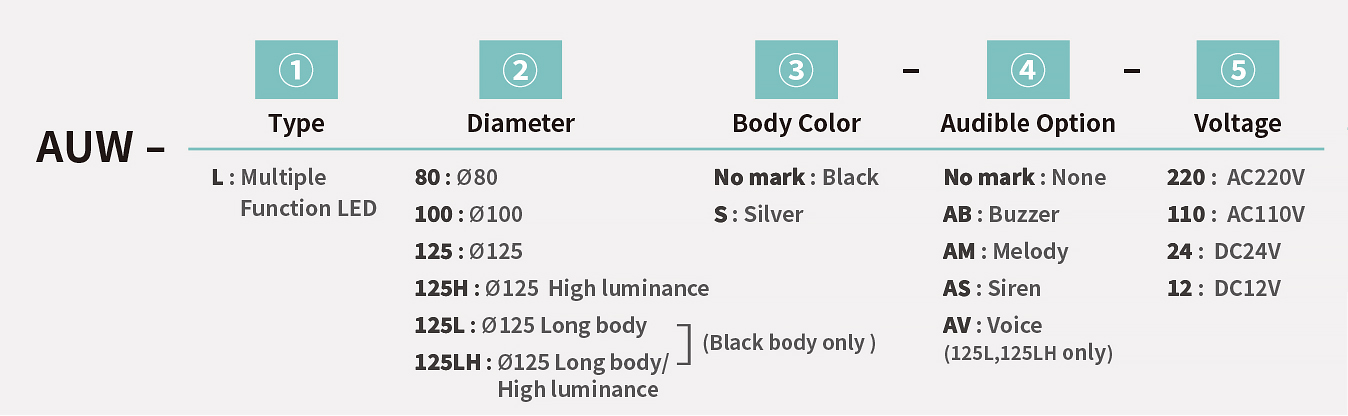

Nomenclature
Product specifications
AUW-L100
- Ø100mm, small Multiple Function LED Warning Light
- Magnet attachment option and vehicle cigar jack option available (DC12V only)
- Body Color : Black, Silver
- Material : Globe [GPPS] / Body [ABS]
- Color: Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated Voltage | Current | LED EA | Weight(g) |
|---|---|---|---|---|
| AUW-L100 | AC 110V | 0.04 (A) | 54EA | 455 g |
| AC 220V | 0.02 (A) | 54EA | 455 g | |
| DC 12V | 0.14 (A) | 54EA | 269 g | |
| DC 24V | 0.2 (A) | 54EA | 269 g |
Embedded buzzer specifications
- Basic 3 notes
- Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
| Output | Tone | |
|---|---|---|
| Max. 80dB | Buzzer AB | Beep~~~Beep |
| beep ~ beep ~ beep | ||
| Wing Wing Wing | ||
| Melody AM | Fur Elise | |
| Home Sweet Home | ||
| London Bridge is Falling Down | ||
| Siren AS | Urgent | |
| Emergency | ||
| Fire | ||
How to Adjust the LED DIP Switches
Light Inner DIP switches
Operate 4 kinds of function by dip switches steady / flashing / revolving / flashing-revolving
| DIP / SW | 1 2 |
1 2 |
1 2 |
1 2 |
|---|---|---|---|---|
| DIP |  |
 |
 |
 |
| ON | ■ ■ |
■ |
■ |
|
| OFF | ■ ■ |
■ |
■
| |
| Operation |  steady |
 flashing |
 revolving |
 flashing-revolving |

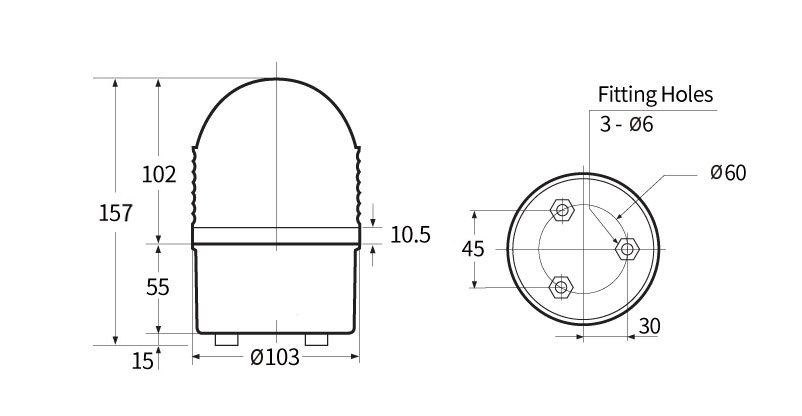

Technical Diagram
Product wiring diagram
Vertical Bracket
| Available for warning lights in sizes Ø80, Ø100, and Ø125. (Bulb/LED type) |
|
