led 아이콘  AUW – L150SMultiple Function LED Warning Light

View Catalog
  • Ø150mm Standard multi-function LED warning light SUS body
  • It is lightweight, impact resistant, and has a stainless (SUS304) structure, using a polystyrene grove with special joules, and has excellent corrosion resistance
  • The multi-functional LED warning light uses a built-in microchip to select four operations: lighting, rotation, rotation-flashing, and flashing.
  • Suitable for use in places with severe vibration or difficult to change light bulbs
  • Excellent radiant effect using high luminance LED elements
  • Semi-permanent lifespan using electronic circuit board
  • Can be adjusted between AC110V ↔ 220V by adjusting pins on the inner board of the product
  • Two types of LED brightness: standard and high brightness
  • Material : Globe [GPPS] / Body [SUS304]
  • Operating Temperature :-25℃ ~ 50℃
  • Default wire length: 300mm

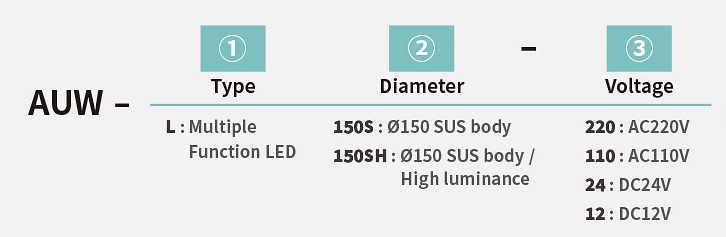

Nomenclature



Product specifications



AUW-L150S

  • Ø150mm standard Multiple Function LED Warning Light
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
MODEL Rated Voltage Current consumption LED EA Weight(g)
AUW-L150S AC 110V 0.09 (A) 54EA 1179 g
AC 220V 0.04 (A) 54EA 1179 g
DC 12V 0.26 (A) 54EA 880 g
DC 24V 0.32 (A) 54EA 880 g
MODEL Rated Voltage Current consumption LED EA Weight(g)
AUW-L150SH
high luminance
AC 110V 0.11 (A) 90EA 1202 g
AC 220V 0.06 (A) 90EA 1202 g
DC 12V 0.43 (A) 90EA 903 g
DC 24V 0.51 (A) 90EA 903 g



How to Adjust the LED DIP Switches

DIP switches

Operate 4 kinds of function by dip switches steady / flashing-revolving / flashing / revolving

DIP / SW
1
2
1
2
1
2
1
2
ON


OFF



DIP LED-DIP_1 LED-DIP_2 LED-DIP_3 LED-DIP_4
Operation steady

steady

Revolving

Revolving

flashing-Revolving

flashing-Revolving

flashing

flashing

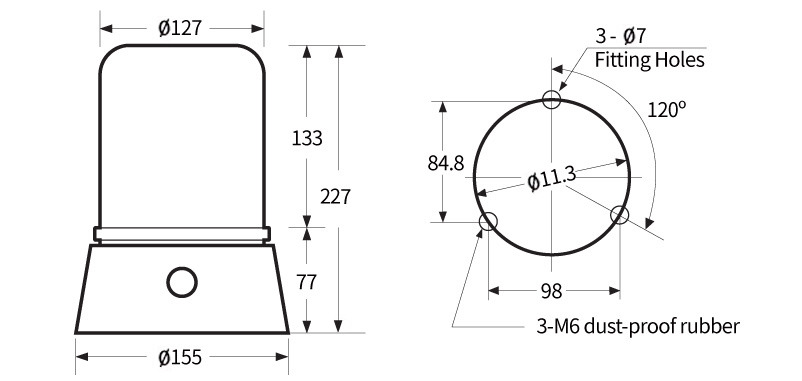

Technical Diagram
Product wiring diagram
AUW-R100
