Earth Bar
view catalog
- Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.
- Materials: copper 99.9% / Tin-plated
- Volts Size : M5(Single-file) / M4,M5(Double-file)
- Certificates :
Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.
Nomenclature
![](http://segibiz7.cafe24.com/wp-content/uploads/2020/07/SGEB.jpg)

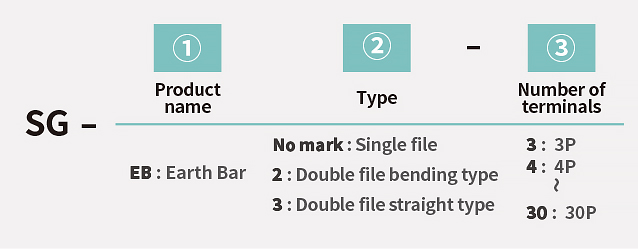

- ① Product name : Earth Bar
- ② Type :
– : Single file / 2: Double file bending type / 3: Double file straight type - ③ The number of terminals : 3P ~ 30P
Product specifications
SG-EB
![EB1](/wp-content/uploads/2023/05/SG-EB.png)
![EB1](/wp-content/uploads/2023/05/SG-EB_zoom.png)
![EB1](/wp-content/uploads/2023/05/SG-EB_drawing.jpg)
Model | Size(mm) | Weight(g) | ||||||
A | B | C | D | E | F(Width) | t(Thickness) | ||
SG-EB-3P | 92 | 75 | 15 | 11 | 5.5 | 15 | 3t | 435 |
SG-EB-4P | 107 | 90 | 15 | 11 | 5.5 | 15 | 3t | 505 |
SG-EB-5P | 122 | 105 | 15 | 11 | 5.5 | 15 | 3t | 595 |
SG-EB-6P | 137 | 120 | 15 | 11 | 5.5 | 15 | 3t | 675 |
SG-EB-7P | 152 | 135 | 15 | 11 | 5.5 | 15 | 3t | 760 |
SG-EB-8P | 167 | 150 | 15 | 11 | 5.5 | 15 | 3t | 830 |
SG-EB-10P | 197 | 180 | 15 | 11 | 5.5 | 15 | 3t | 970 |
SG-EB-12P | 227 | 210 | 15 | 11 | 5.5 | 15 | 3t | 1120 |
SG-EB-15P | 272 | 255 | 15 | 11 | 5.5 | 15 | 3t | 1360 |
SG-EB-20P | 347 | 330 | 15 | 11 | 5.5 | 15 | 3t | 1760 |
SG-EB2
![EB2](/wp-content/uploads/2023/05/SG-EB2.png)
![EB2](/wp-content/uploads/2023/05/SG-EB2_zoom.png)
![EB2](/wp-content/uploads/2023/05/SG-EB2_drawing.jpg)
Model | Size(mm) | Weight(g) | ||||||
A | B | C | D | E | F(Width) | t(Thickness) | ||
SG-EB2-6P | 99 | 82 | 15 | 11 | 5.5 | 25 | 3t | 810 |
SG-EB2-8P | 114 | 97 | 15 | 11 | 5.5 | 25 | 3t | 930 |
SG-EB2-10P | 129 | 112 | 15 | 11 | 5.5 | 25 | 3t | 1070 |
SG-EB2-12P | 144 | 127 | 15 | 11 | 5.5 | 25 | 3t | 1190 |
SG-EB2-16P | 174 | 157 | 15 | 11 | 5.5 | 25 | 3t | 1440 |
SG-EB2-20P | 204 | 187 | 15 | 11 | 5.5 | 25 | 3t | 1720 |
SG-EB2-24P | 234 | 217 | 15 | 11 | 5.5 | 25 | 3t | 1950 |
SG-EB2-30P | 279 | 262 | 15 | 11 | 5.5 | 25 | 3t | 2350 |
SG-EB3
![EB3](/wp-content/uploads/2023/05/SG-EB3.png)
![EB3](/wp-content/uploads/2023/05/SG-EB3_zoom.png)
![EB3](/wp-content/uploads/2023/05/SG-EB3_drawing.jpg)
Model | Size(mm) | Weight(g) | |||||
A | B | C | D(ø) | E(Width) | t(Thickness) | ||
SG-EB3-6P | 99 | 82 | 15 | 5.5 | 25 | 3t | 720 |
SG-EB3-8P | 114 | 97 | 15 | 5.5 | 25 | 3t | 860 |
SG-EB3-10P | 129 | 112 | 15 | 5.5 | 25 | 3t | 990 |
SG-EB3-12P | 144 | 127 | 15 | 5.5 | 25 | 3t | 1090 |
SG-EB3-16P | 174 | 157 | 15 | 5.5 | 25 | 3t | 1380 |
SG-EB3-20P | 204 | 187 | 15 | 5.5 | 25 | 3t | 1630 |
SG-EB3-24P | 234 | 217 | 15 | 5.5 | 25 | 3t | 1890 |
SG-EB3-30P | 279 | 262 | 15 | 5.5 | 25 | 3t | 2290 |
