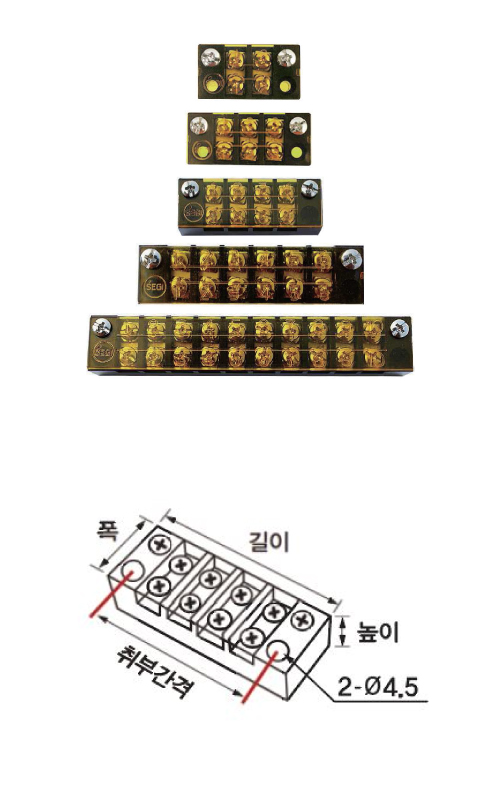

Terminal block View Catalog
Product Specification
Rated voltage : 250V / Allowable current : 15A
Category temperature : -20℃ ~70℃ / Color : black
Certificates :
| Model | Size(mm) | |
| L x W x H | Attachment | |
| SG-TB-1502 | 38 X 20 X 14 | 28 |
| SG-TB-1503 | 48 X 20 X 14 | 38 |
| SG-TB-1504 | 57 X 20 X 14 | 48 |
| SG-TB-1506 | 77 X 20 X 14 | 67 |
| SG-TB-1510 | 117 X 20 X 14 | 107 |
Fixed Bracket
Product Detail
Color : Silver
Certificates :
| Size(mm) | |||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| SG-B1-4045 | SG-B1-4090 | SG-B2-6045 | SG-B2-6090 | SG-B3-4045 | SG-B3-4090 |
※ Width : B1, B2 – 17mm / B3 – 22mm / Thickness : 3t
DC Terminal block
Product Specification
Rated voltage : AC250V / Allowable current : 10A
Category temperature : -20℃ ~70℃ / Color : gray
Certificates :
| Model | Size(mm) | |
| L x W x H | Attachment | |
| SG-DC-4P | 51 X 22 X 27 | 42 |
| SG-DC-6P | 67 X 22 X 26 | 58 |
| SG-DC-10P | 99 X 22 X 26 | 91 |
| SG-DC-15P | 150 X 22 X 26 | 138 |
| SG-DC-20P | 192 X 22 X 31 | 180 |
| SG-DC-25P | 232 X 22 X 31 | 220 |
HC Terminal block
Product Specification
Rated voltage : AC250V / Allowable current : 10A
Category temperature : -20℃ ~400℃ / Color : ivory
Certificates :
| Model | Size(mm) | |
| L x W x H | Attachment | |
| SG-HC-4P | 51 X 22 X 27 | 42 |
| SG-HC-6P | 67 X 22 X 26 | 58 |
| SG-HC-10P | 99 X 22 X 26 | 91 |
| SG-HC-15P | 150 X 22 X 26 | 138 |
| SG-HC-20P | 192 X 22 X 31 | 180 |
| SG-HC-25P | 232 X 22 X 31 | 220 |
Short Bar View Catalog
Product Specification
Allowable current : 10A, 15A
Category temperature : Color: Red, Blue, Yellow, Black
Certificates :
| Model | color | ||
| SG-SB(R/B/Y/K)-2Y | red,blue yellow,black |
MY-2/MY-4 for relay socket | |
| SG-SBR-10Y/R | red | 10A | TB – 4P, 4PT, 6P, 6PT, 10PT, 15PT, 20PT, 30P, 40P, 50P AL – 4P, 6P, 10P, 12P, 15P, 20P, 20PT, 30P, 40P, 50P-S, 50P-L |
| SG-SBB-10R | blue | ||
| SG-SBB-10Y | blue | 15A | TB – 4PT15, 6PT15, 10P15, 15P15, 20P15 |
Din-Rail
Product Specification
Certificates :
※ DR-15 / DR-35 Hole size and spacing are the same
| Model | Width(mm) | Length(mm) |
| SG-DR-15 | 15 | 1000 |
| SG-DR-35 | 35 | 1000 |
